THFS/R

Forestry flail heads for excavators and rotor with bi-directional forged hammers or APEIRON rotor with fixed tools and tungsten carbide inserts.

Working Width (m): 0.80 - 1

Max. cutting diameter (cm): 10 - 15

Rotor + Cutting Tools Diameter (m): 0,40

Required Oil Flow Rate (lt): 50-90

Machine Weight (kg): 380-505

Excavator Weight (kg): 5000 - 9000

Pressure (max. bar): 250

Strengths

STRUCTURAL STEEL FRAME

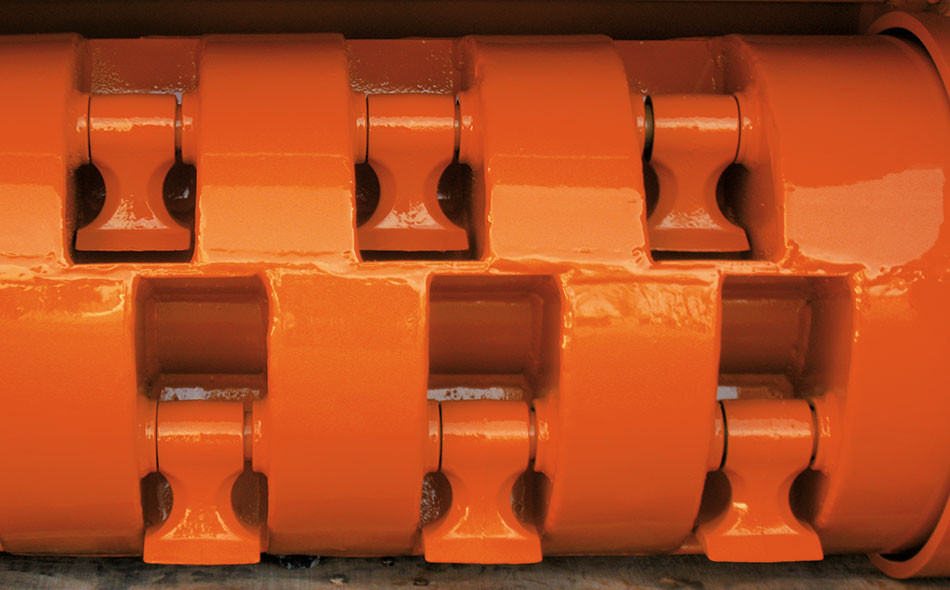

ROTOR FIXED TEETH WITH TUNGSTEN COATING AND ROTOR WITH STEEL PROFILES

Equipment

Standard equipment

High strength steel frame for THFS/R version or HARDOX High strength steel frame for THFS/A version.

Hydraulic cylinder for the housing opening.

Built-in 1/2" 3C valve (Control Valve: Anticavitation, Antishock, Flow Limiter).

Hydraulic pipes with fittings protected by a spiral (excluding terminal couplings).

34cc hydraulic pistons motor with motor protection shaft.

3 trapezoidal belts transmission.

Interchangeable pulleys optimizing available oil flow rate only for THFS/A version.

Adjustable skids with repreaceable wear proof plates.

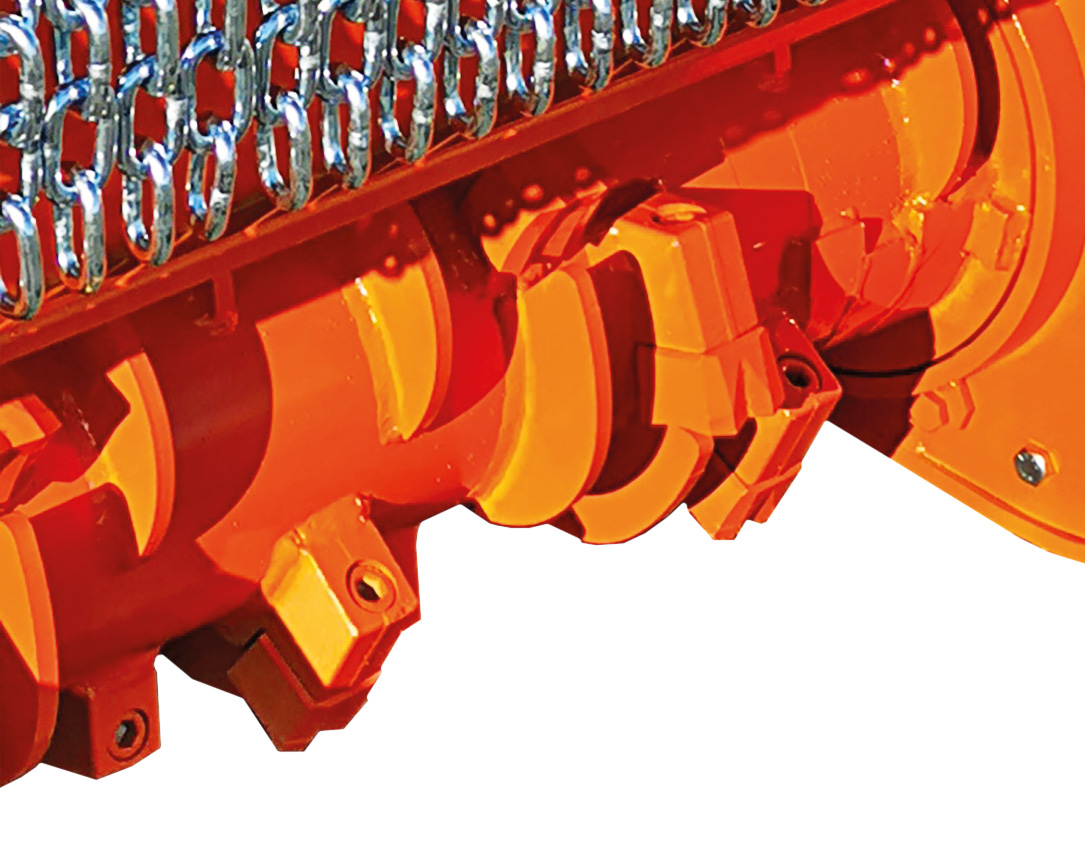

Front protection with high resistance chains and rear protection with high resistance two-rows chains.

Optional

Electro-hydraulic hatch-opening kit, including in-cab cable and actuation button.

Sauer 45cc. Variable Displacement Motor.

THFS support foot for use on spider-type excavators.

Height adjustable supporting roller.

Dedicated attachment linkage wih steel pins.
