TKZ

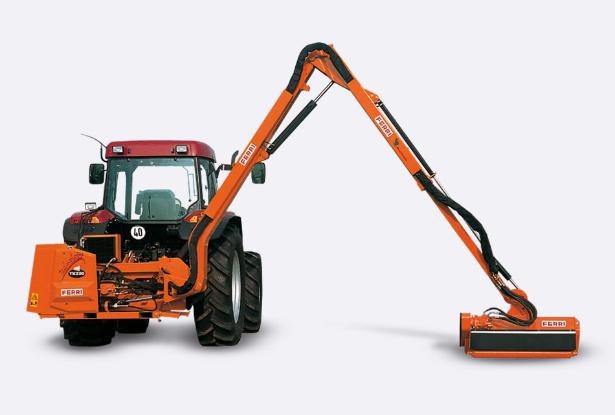

The TKZ hydraulic reach mower series are particularly suitable and designed to meet the needs of companies and contractors who use them intensively in environments and applications where depth of work is required. The TKZ80 features the first shaped arm made of Weldox 700 sheet metal. This feature allows the operator to easily overcome guard rails and barriers without compromising the work in depth along docks or banks of rivers and canals. The professional design of the machine includes the presence of a high power closed circuit piston hydraulic system capable of delivering up to 74 HP to the Rotor.

Working Width (m): 8.18 - 8.18
Max. cutting diameter (cm): 8 - 8.0
Max Extension. (m): 8,18
Head Angle (°): 190
Machine Weight (kg): 1590
Tractor Power (HP): 110 - 130
Min. Tractor Weight (kg): 4800 - 4800
Min.Tractor Width (m): 2,40
Hydraulic System Power (lt): 210

Strengths

REVERSIBLE ROTOR (DSR)
REVERSIBLE ROTOR (DSR)
SRA AUTOMATIC RETURN SYSTEM IN CASE HYDRAULIC BREAK BACK AN ACCUMULATOR CONTROLLED AUTORESET VALVE ALLOWS THE AUTOMATIC RETURN OF THE ARM IN THE WORKING POSITION
SRA AUTOMATIC RETURN SYSTEM IN CASE HYDRAULIC BREAK BACK AN ACCUMULATOR CONTROLLED AUTORESET VALVE ALLOWS THE AUTOMATIC RETURN OF THE ARM IN THE WORKING POSITION
LFA LIFT FLOAT ACCUMULATOR (LIFT FLOAT ON THE 1ST ARM BY ACCUMULATOR) PERMITS THE ENGAGEMENT AND DISENGAGEMENT OF THE LIFT FLOAT ON THE 1ST ARM
LFA LIFT FLOAT ACCUMULATOR (LIFT FLOAT ON THE 1ST ARM BY ACCUMULATOR) PERMITS THE ENGAGEMENT AND DISENGAGEMENT OF THE LIFT FLOAT ON THE 1ST ARM
WELDOX 700 TELESCOPIC EXTENSION WITH ADJUSTABLE WEAR PLATES
WELDOX 700 TELESCOPIC EXTENSION WITH ADJUSTABLE WEAR PLATES

Equipment

Standard equipment
3 point ISO universal linkage CAT 3.
Piston hydraulic system in closed circuit.
SC Tronic Dual Electric control proportional with two separate elements. With CANBUS technology.
Oil cooler in aluminium with thermostat
Hydraulic breakaway with accumulator controlled autoreset facilty (SRA) – with electric disengagement (PSS), a maximum relief valve is available for arm protection
“HP” High Performace worm gear box with high torque transmission.
Lift float electric (1st arm lift float with nitrogen accumulator) LFA Electric.
Boxed pivoting bracket.
Oil and PTO shaft.
TNHC 125 NG flail head with cast iron hydraulic motor, with large diameter support roller and Agri-Disk NG flanged units.
Optional
Stabilizers to the tractor.
Sliding bracket to adapt to the tractor.
Stabilizers for sliding brackets.
ARK300 Universal fixed linkage and accessory kit according to the type of tractor

Terminal Tools

TR 13 Power
TR 22 Power
SE 300x
TNHC 125 NG Power

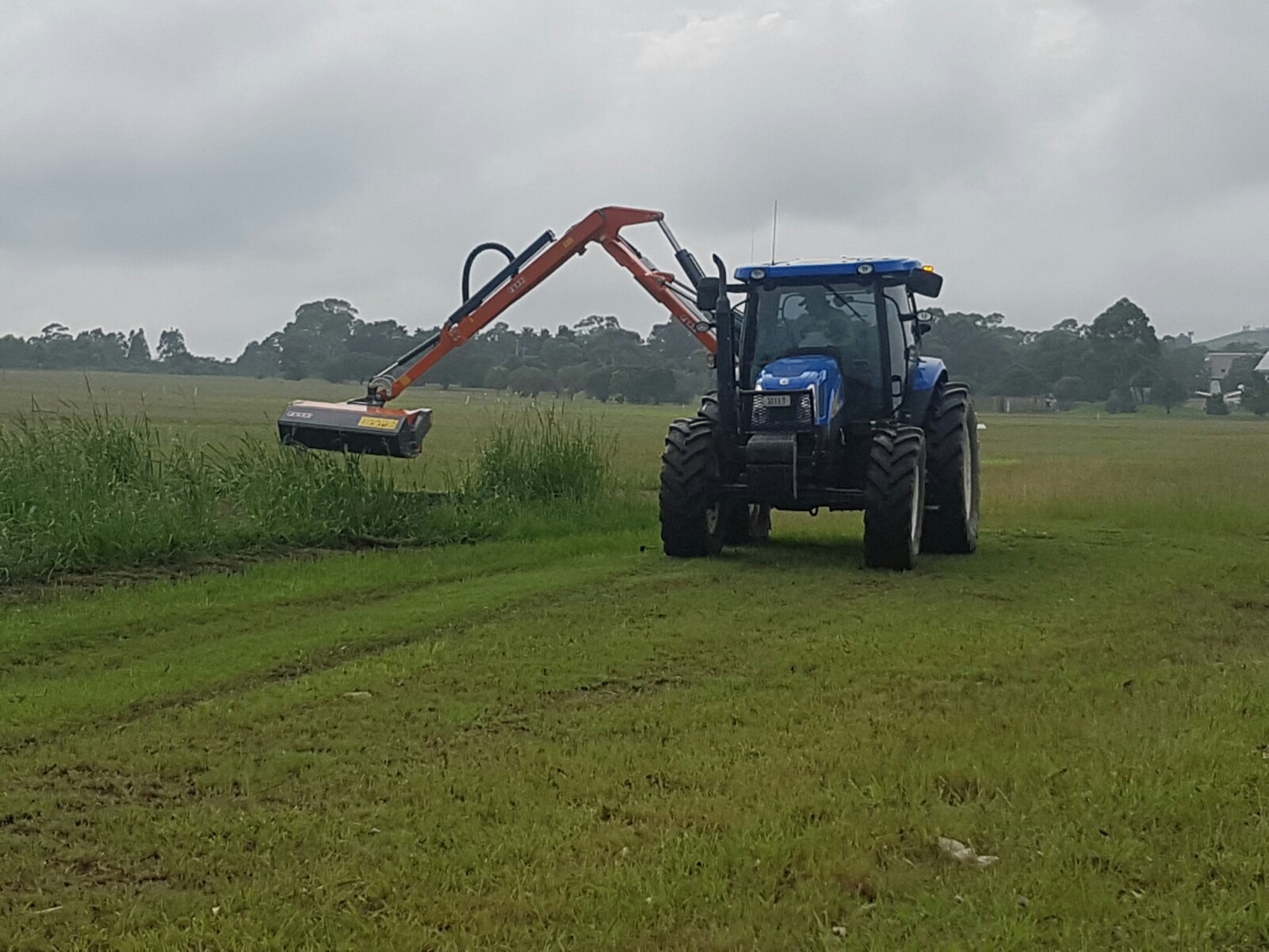

Photos and videos

|
