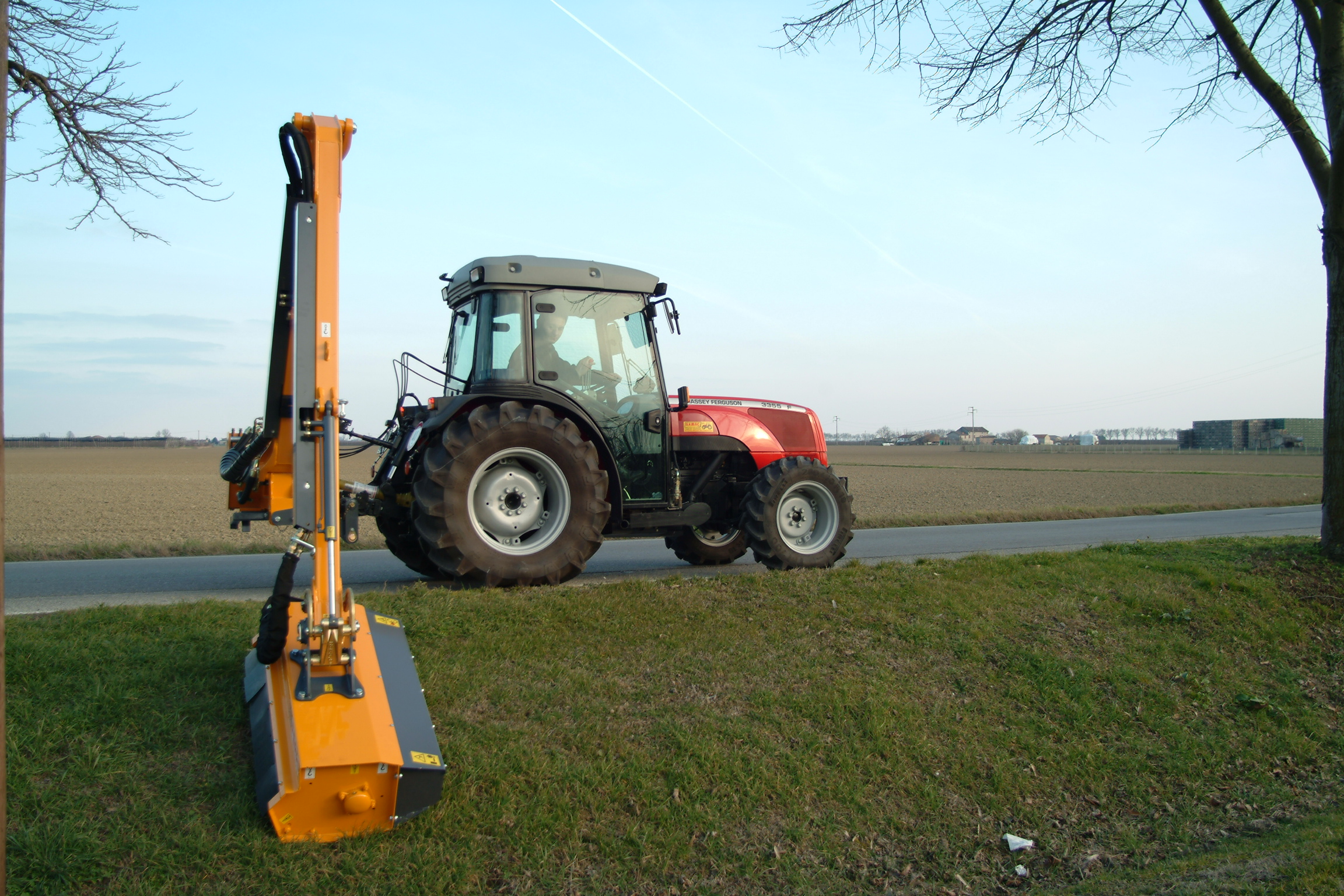

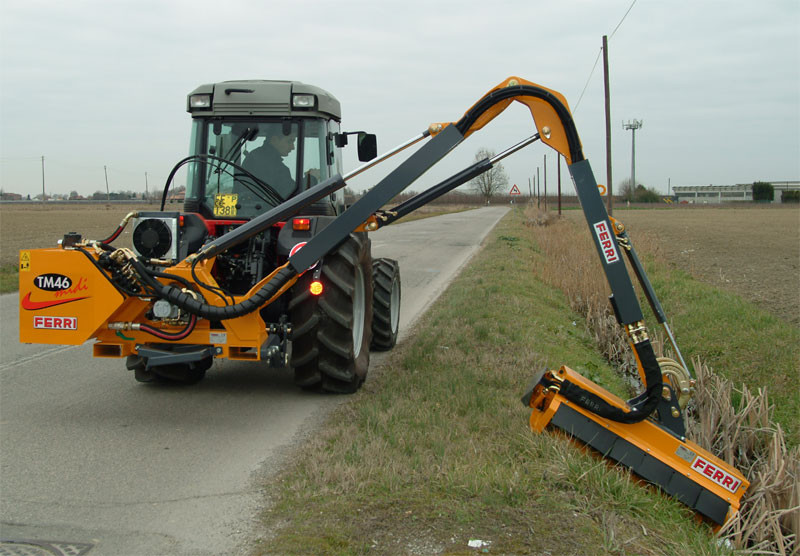

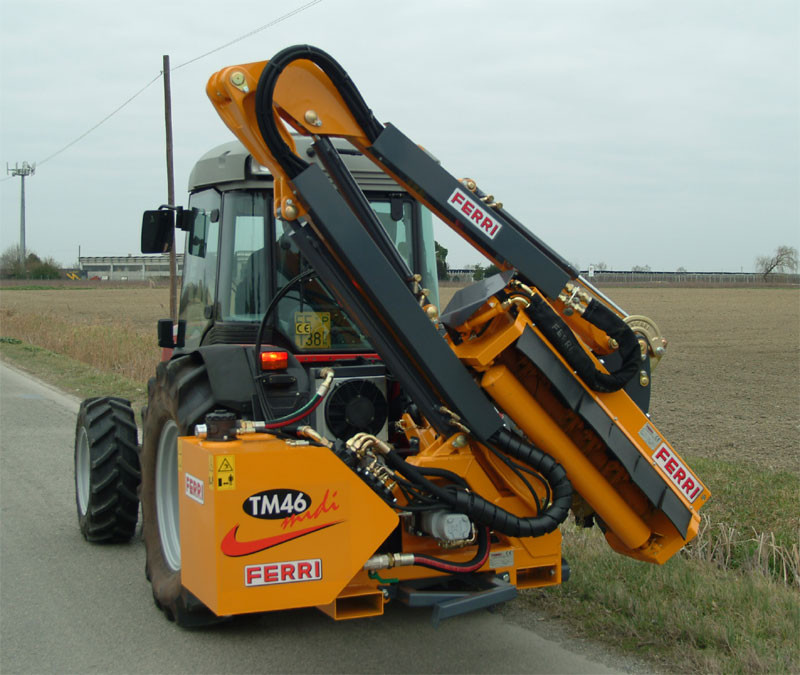

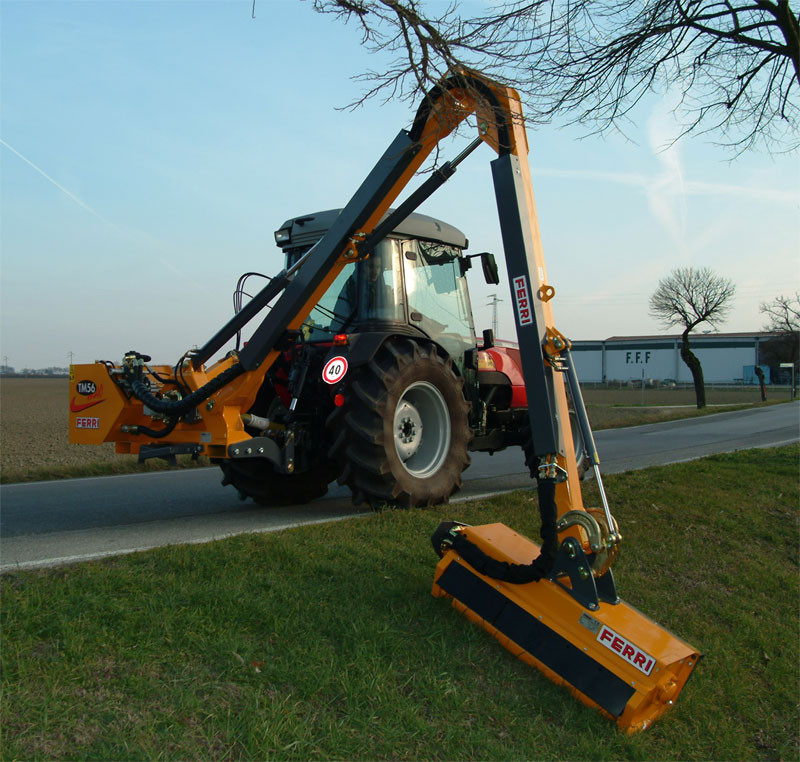

The term “multifunctionality” is the most appropriate for the TM hydraulic reach mower series. Thanks to a maximum horizontal reach between 4.5 and 5.5 meters, TM46 and 56 models are widely used both in landscaping and grounds maintenance care. The possibility of combining the reach mowers to tractors of limited power and low weight enables easy operation and friendly use. The TM series includes design features that include drop forged parts for the arms articulation and flail head linkages, spiral rotor with double helix and overlapping knives, pump and cast iron motor and flail head floating system enabling the flail head to better follow the ground contours.

Cutting width (ft): 3.11 - 2.11
Max. cutting diameter (in.): 1.75 - 1.75
Max. horizontal reach (ft): 15,3
Flailhead angle (°): 190
Weight (lbs): 1636
Tractor (HP): 50 - 70
Min. tractor weight (lbs): 5512 - 5512
Min.tractor width (ft): 5,11
Oil (Gal.): 33

Strengths

MECHANICAL SHOCK ABSORBER
MECHANICAL SHOCK ABSORBER
REVERSIBLE ROTOR (DSR)
REVERSIBLE ROTOR (DSR)
FLOATING HEAD SYSTEM TO FOLLOW GROUND CONTOURS
FLOATING HEAD SYSTEM TO FOLLOW GROUND CONTOURS

Equipment

Standard equipment
3 point ISO universal linkage CAT 2.
High Power Gear hydraulic system.
Cable controls (Classic). Electric progressive control (Electra). Electric progressive controls with electric switch for rotor start and stop (Electra Full).
Mechanical breakway.
Floating head system to follow ground contours.
Oil and PTO shaft.
Accident prevention protections according to EC directives
Optional
Stabilizers to the tractor.
Delta yoke for stabilizers.
Stabilizers for Delta yoke.
Oil cooler with thermostat.
Lift float on 1st arm with nitrogen accumulator, mechanical LFA

Terminal Tools

CS 150 S2 Energy
CSP 150 Energy
TI 100 Energy
