TSF 600 Unimog

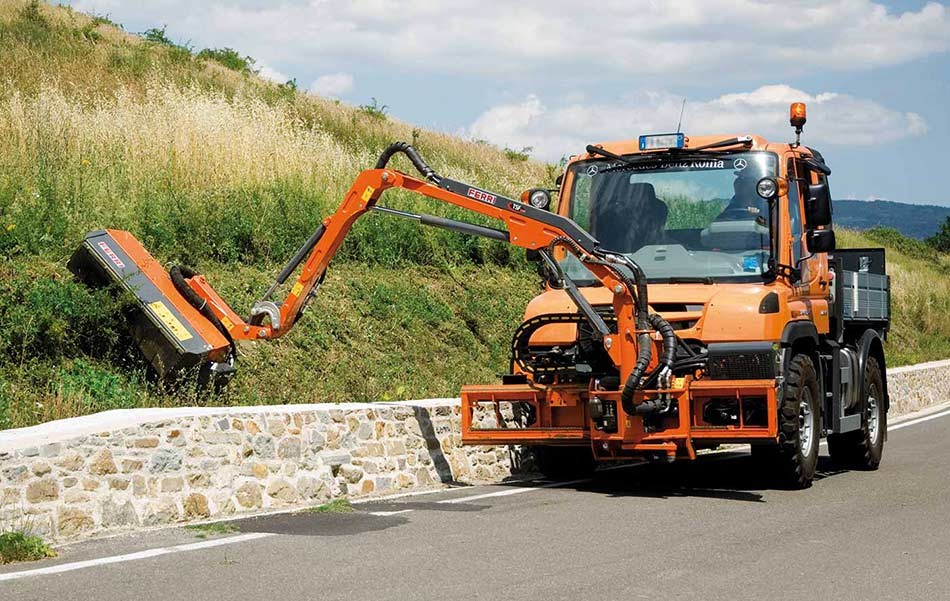

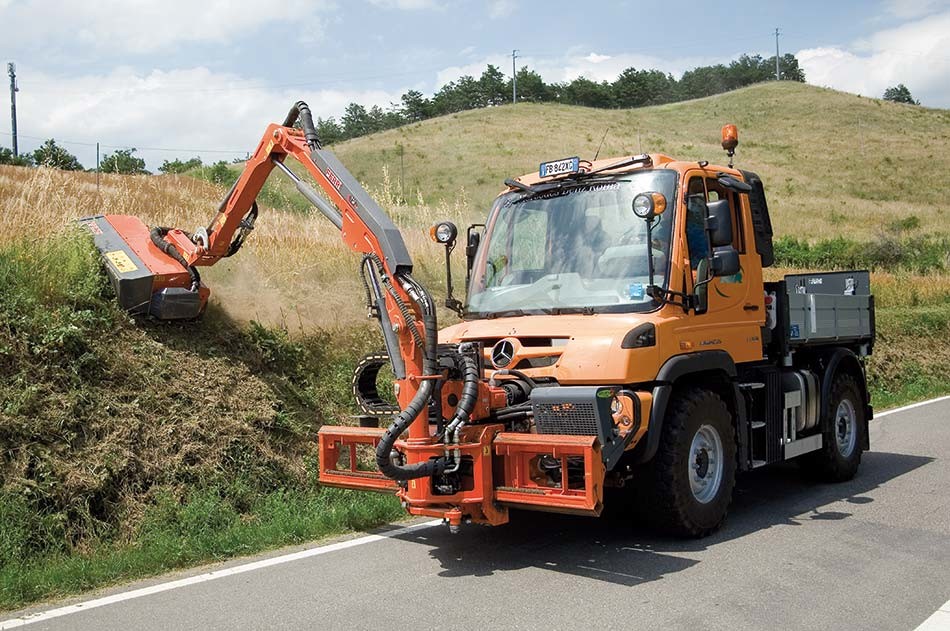

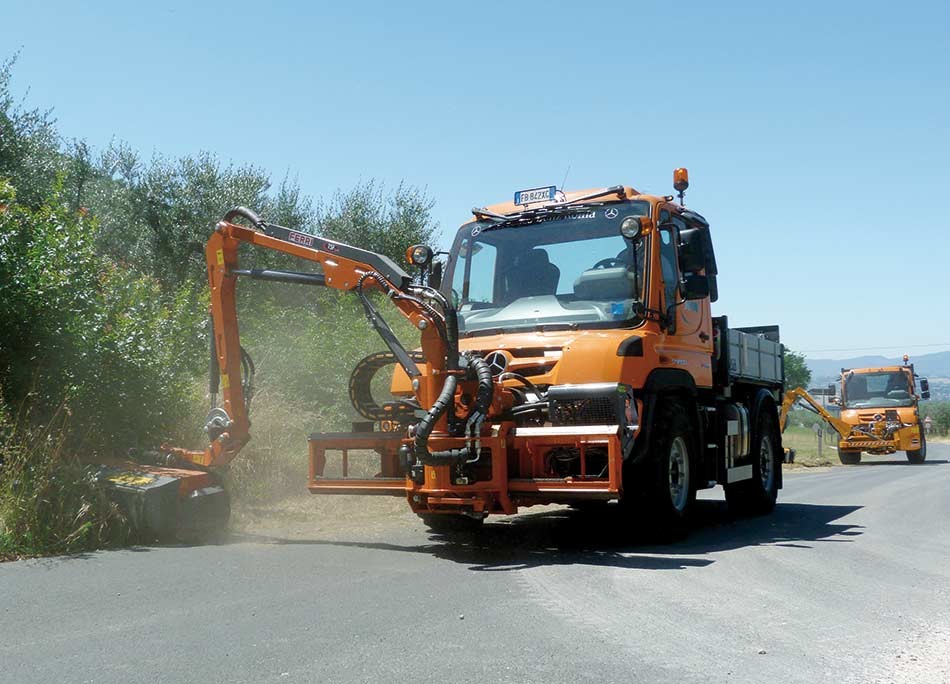

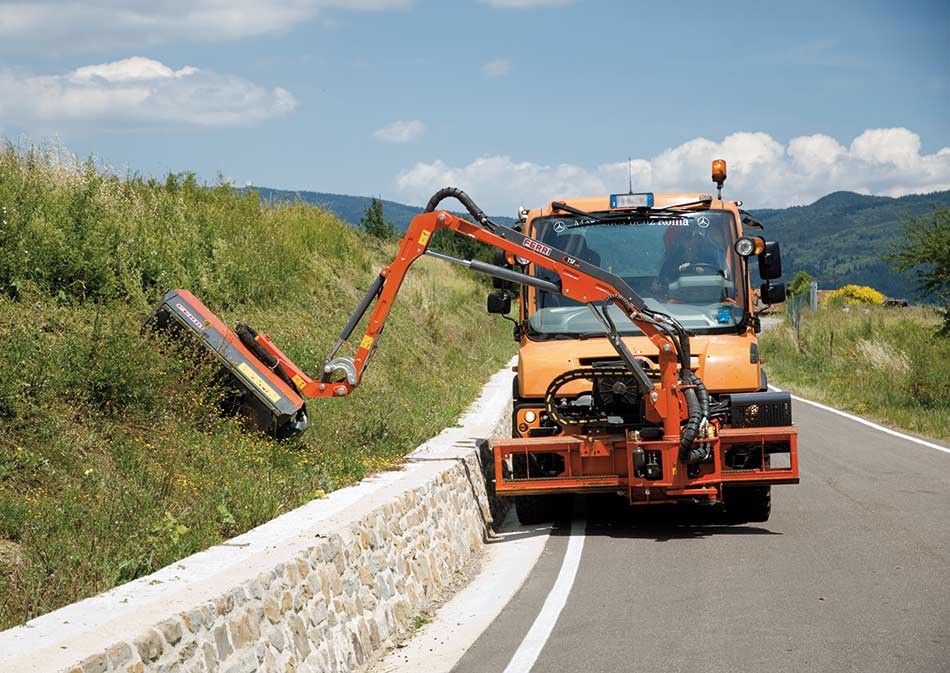

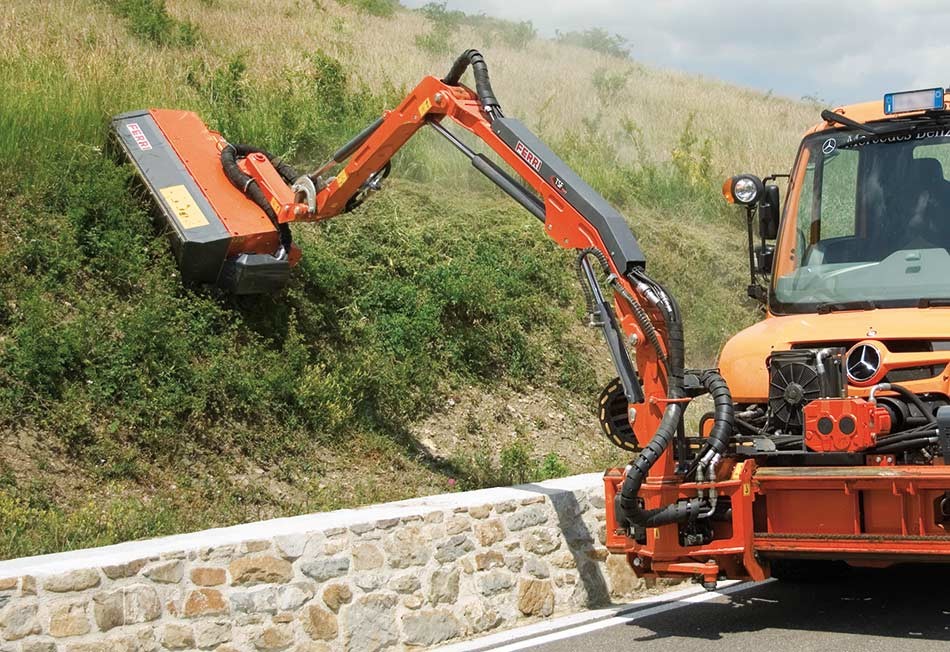

The Ferri TSF 600U front mount reach mower was designed to be specifically applied to the Unimog tool carrier attached to the front plate. It is made of high quality steel tubing thereby providing high strength and low weight.
Unimog Model (starting from): U318
Max horizontal reach: 5,75 m
Working width: 1,25 m
Transport width: 2,50 m
Il braccio decespugliatore frontale Ferri TSF 600U è stato progettato per essere applicato specificatamente sul porta-attrezzi Unimog agganciato alla piastra anteriore. È realizzato in tubolare in acciaio di alta qualità permettendo così una elevata robustezza ed un peso contenuto.

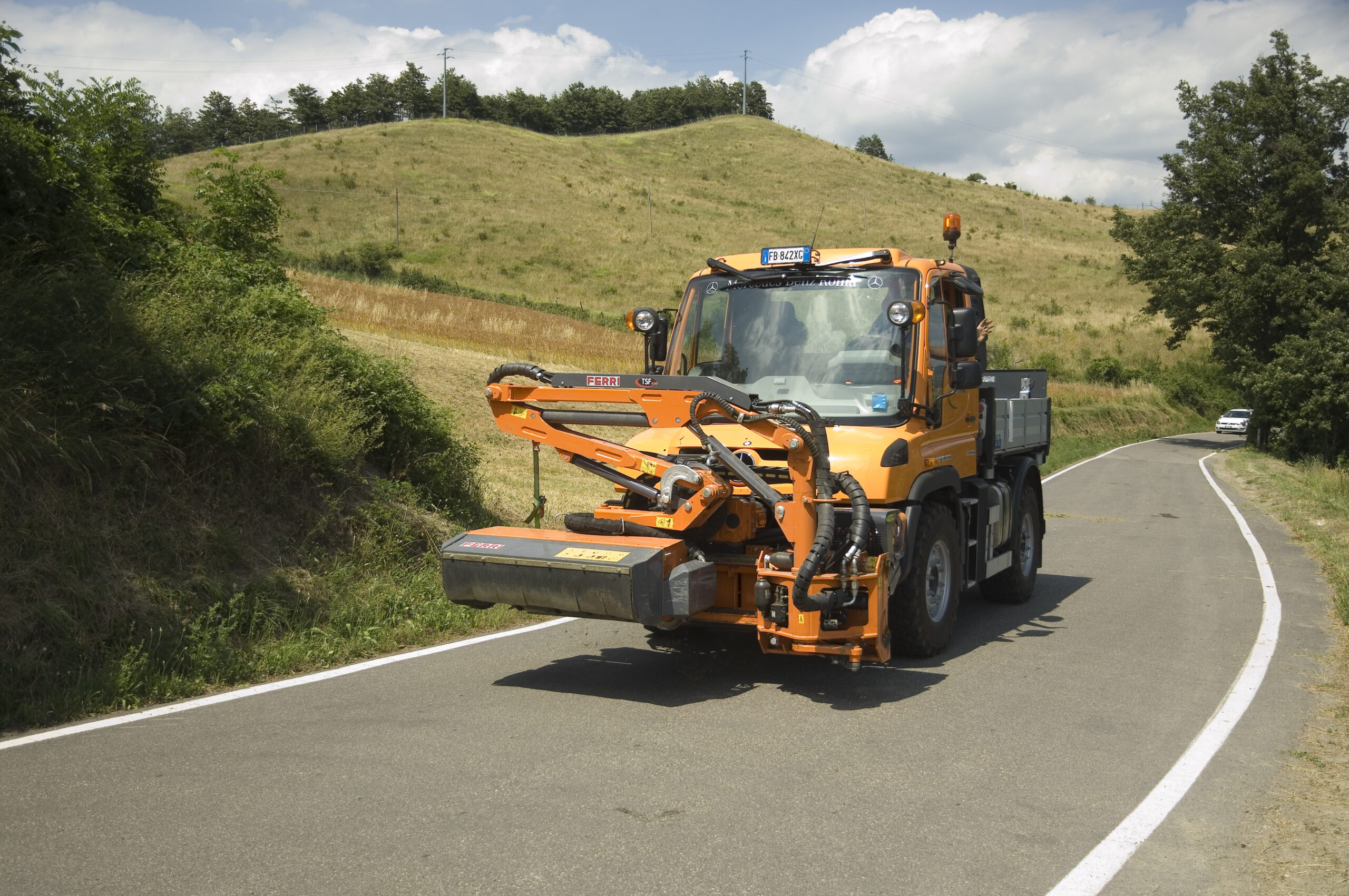

The particular geometry of the reach mower enables a transport position with a perfect view for the operator. Similarly there is also optimum vision in the various working positions, right and/or left, always ensuring maximum operator comfort. The correct flail head rotor speed is ensured by the cast iron gear pump powered by the front PTO. The Unimog hydraulic system provides the oilflow to the reach mower cylinders. The complete unit is controlled via the single lever joystick. The reach mower has got an hydraulic break back with accumulator controlled autoreset device. The heat exchanger with thermostat was created to prevent hydraulic oil overheating even when operating in extreme and prolonged situations.
Electronic proportional controls SC TRONIK
The innovative control system is divided into two parts in order to occupy less space in the cab and consists of a proportional joystick and a control panel. The Joiystick provides four proportional functions that control the two arms movements, as well as the head rotation and the arm rotation. On the Joystick are also available press buttons to control the side shift (left to right and viceversa) of the arm holder column. The detached control panel provides press buttons to manage the rotor enagement and its quick stop (the breaking time allowed by safety criteria is 6 secondo approximately). From the control panel it is also possible to switch the breack back device from accumulator controlled autoreset device to the hydraulic break back with maximum relief valve. The EFS is also a function that can be engaged by the control panel.
The control provides the ability to select different working modes according to the type of working conditions that apply. The device also has a self-diagnostic system.
Combination with the Unimog tool carrier
The TSF600U reach mower can be combined with the Unimog tool carrier starting from the U318 model.
It is necessary to provide adequate rear ballast (further details are available from our sales network).
