TSH

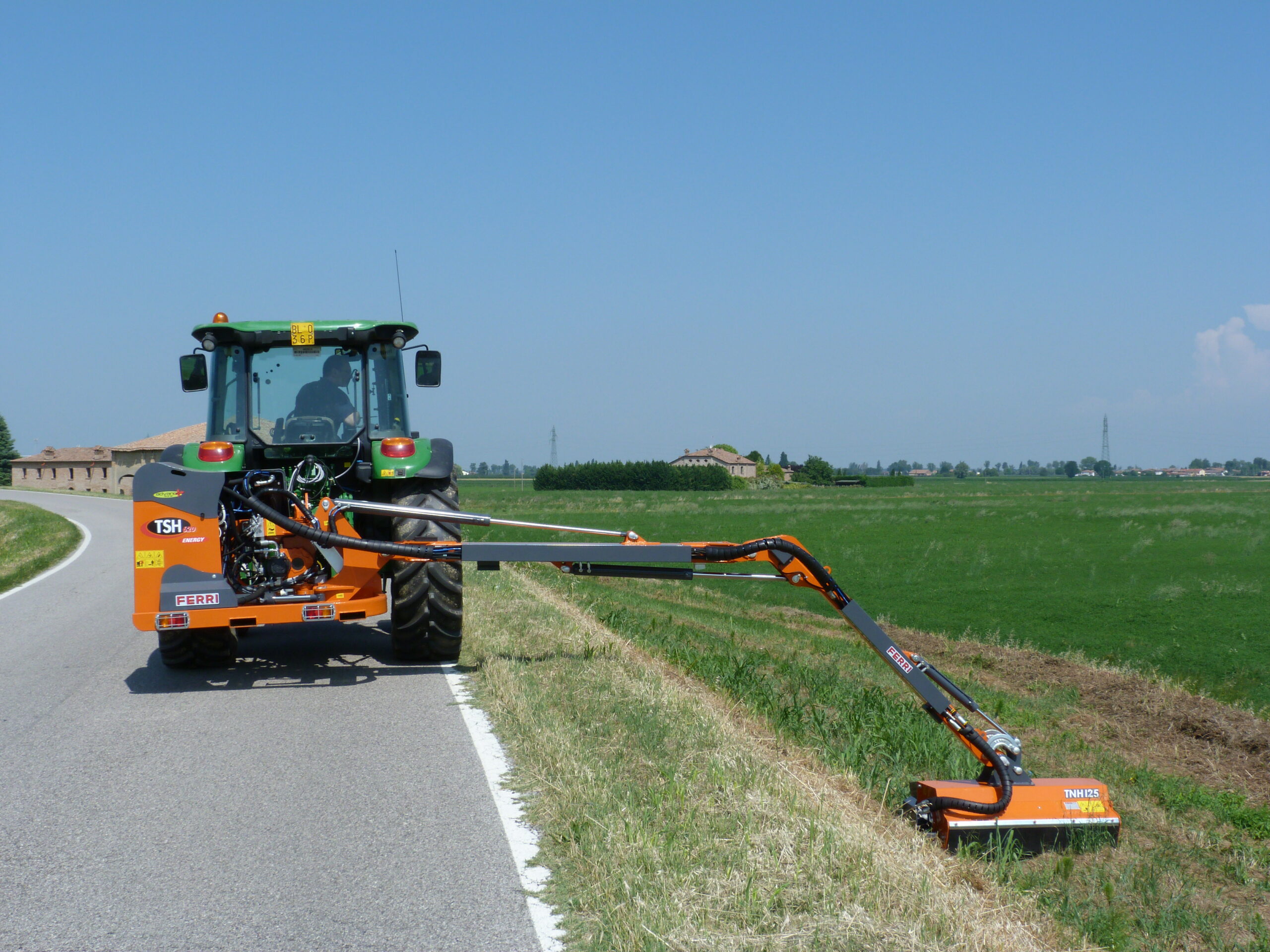

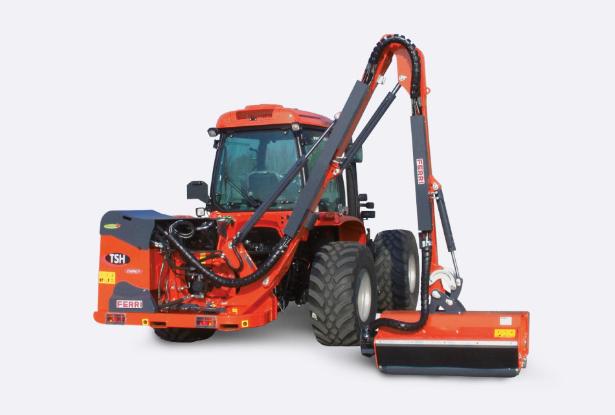

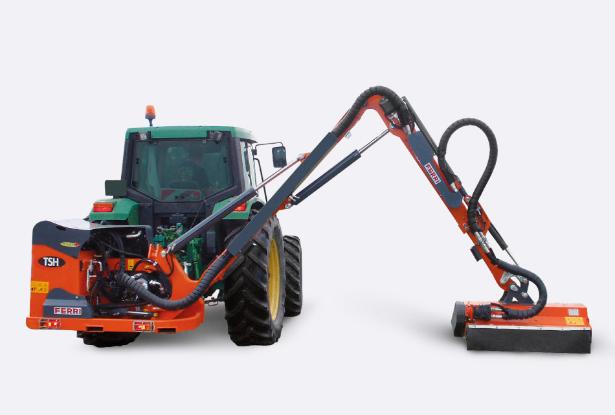

The TSH model has several new features especially in the area of operator safety, in detail, innovative efforts have mainly involved the chassis, where the innovative and award-winning Reverse Safety device has been provided. It has been included in the standard equipment and protects the chassis or booms from dangerous damage, should an obstacle be inadvertently hit while the tractor is being reversed, causing the boom to rotate forward. A safety system has also been provided as standard to protect against header impact in the forward direction of the tractor. An audible warning has then been provided to increase safety in case of overheating of the hydraulic system oil. A Soft Start device has also been added to the heat exchanger, which applied to the fan makes operation smoother and more harmonious. The new model uses either TNH (direct drive) or TNHC (belt drive) flail head model both have their frames reinforced, especially at the sides with STRENX 700, while the inner vault, which is much more prone to wear, is reinforced with some HARDOX 400, especially recommended for these heavy and demanding uses.

Working Width (m): 1.25 - 1.25

Max. cutting diameter (cm): 8.0 - 8.0

Max Extension. (m): 6,15 - 7,19

Head Angle (°): 190 - 235

Machine Weight (kg): 1400 - 1550

Tractor Power (HP): 90 - 120

Min.Tractor Width (m): 2,30 - 2,40

Hydraulic System Power (lt): 170 - 140

Strengths

REVERSIBLE ROTOR (DSR)

SAB ROLL-OVER PROTECTION SYSTEM AUTOMATIC ROLL-OVER PROTECTION WHEN THE FIRST ARM EXCEEDS 90° IN VERTICAL POSITION

DUAL WAY HYDRAULIC DEVICE FOR 180 FLAILHEAD ROTATION TO MOW BOTH WAYS

REVERSE SAFETY (PATENTED)

Equipment

Standard equipment

3 point ISO universal linkage CAT 2.

High Power Gear hydraulic system for energy version or piston system in closed circuit for power version

SC Tronic Dual Electric control proportional with two separate elements. With CANBUS technology.

Oil cooler with thermostat.

Hydraulic breakaway with accumulator controlled autoreset facilty (SRA) – with manual disengagement. Power slew security (PSS) with max relief valve and soft stop.

“HP” High Performace worm gear box with high torque transmission.

Electric Roll Over protection system (SAB).

Reverse safety.

Oil and PTO shaft.

TNH 125 NG flail head for energy version or TNHC 125 NG flail head for power version both with cast iron hydraulic motor, large diameter support roller and Agri-Disk NG flanged units .

Optional

Stabilizers to the tractor

1st arm lift float with factory fitted nitrogen accumulator (LFA Electric)

Hydraulic device for 180° flailhead rotation to mow both ways

Electronic floating system (EFS) by means of potentiometer

TNHC 125 NG flail head with cast iron hydraulic motor, with large diameter support roller and Agri-Disk NG flanged units (opt. For Energy version).
