TSI

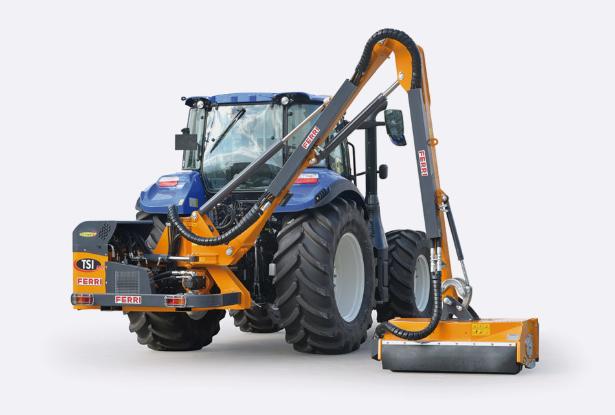

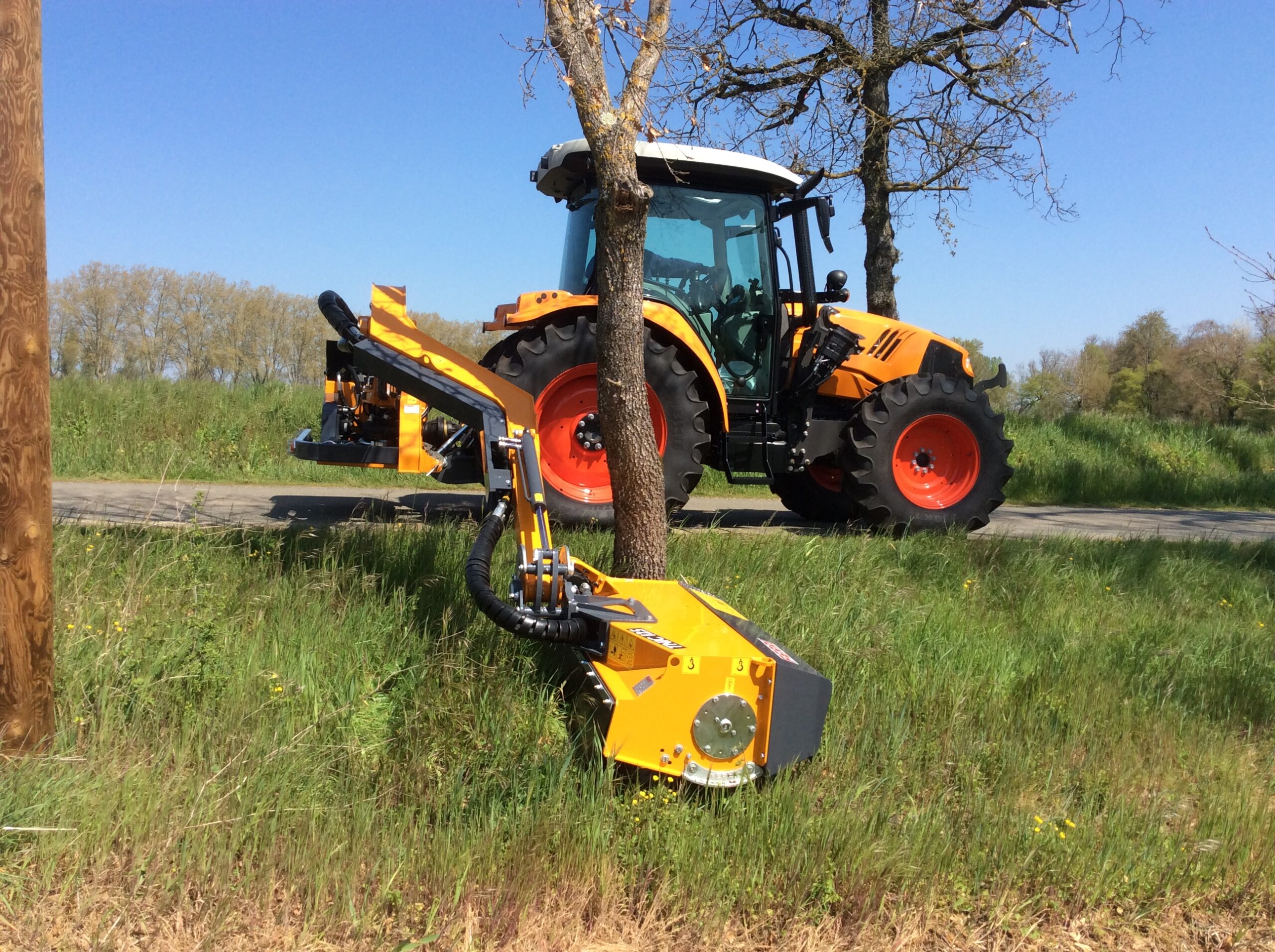

The new TSI reach mower model is designed to deliver performance, value and durability. The TSI model is the most representative reach mower of the Leader-Team range. The TSI models are available with 5.0 m and 6.0 m outreach. The TSI series offers outstanding productivity and has been designed to withstand workloads and prolonged use. Designed for contractors, medium and large farms and local vegetation maintenance teams, the hydraulic reach mowers of the new TSI series are of a heavy duty design and built with reliable cast iron pumps, motors and gearboxes.

Working Width (m): 1.25 - 1.25

Max. cutting diameter (cm): 6.0 - 6.0

Max Extension. (m): 5,00

Head Angle (°): 190

Machine Weight (kg): 1190 -1230

Tractor Power (HP): 80 - 110

Min. Tractor Weight (kg): 3200 - 3500

Min.Tractor Width (m): 2,10 -2,30

Hydraulic System Power (lt): 130

Strengths

REVERSIBLE ROTOR (DSR)

LFA LIFT FLOAT ACCUMULATOR (LIFT FLOAT ON THE 1ST ARM BY ACCUMULATOR) PERMITS THE ENGAGEMENT AND DISENGAGEMENT OF THE LIFT FLOAT ON THE 1ST ARM

SRA AUTOMATIC RETURN SYSTEM IN CASE HYDRAULIC BREAK BACK AN ACCUMULATOR CONTROLLED AUTORESET VALVE ALLOWS THE AUTOMATIC RETURN OF THE ARM IN THE WORKING POSITION

SAB ROLL-OVER PROTECTION SYSTEM AUTOMATIC ROLL-OVER PROTECTION WHEN THE FIRST ARM EXCEEDS 90° IN VERTICAL POSITION

Equipment

Standard equipment

3 point ISO universal linkage CAT 2.

“HP” High Performace worm gear box with high torque transmission.

Cable controls (Classic) or Electric control console with 4 proportional functions with electrical rotor control, hour counter and temperature safety sensor (EV Tronic Dual).

Oil cooler with thermostat.

Hydraulic breakaway with accumulator controlled autoreset facilty (SRA) – with manual disengagement.

Floating head system to follow ground contours.

Electrical lift float (LFA) on 1st arm with nitrogen accumulator.

Rollover protection system (SAB) (only EV Tronic Dual version).

Oil and PTO shaft.

Accident prevention protections according to EC directives.

Optional

Flailhead TNIC 125 (opt), with cast iron hydraulic motor, with top mounted (opt. With rearmounted).

Stabilizers to the tractor.

Sliding bracket to adapt to the tractor.

Stabilizers for Delta yoke.

Terminal Tools

Working Width (m): 1.50 - 1.50

CSP 150 Energy

Working Width (m): 1.5 - 1.5

SE 300x
