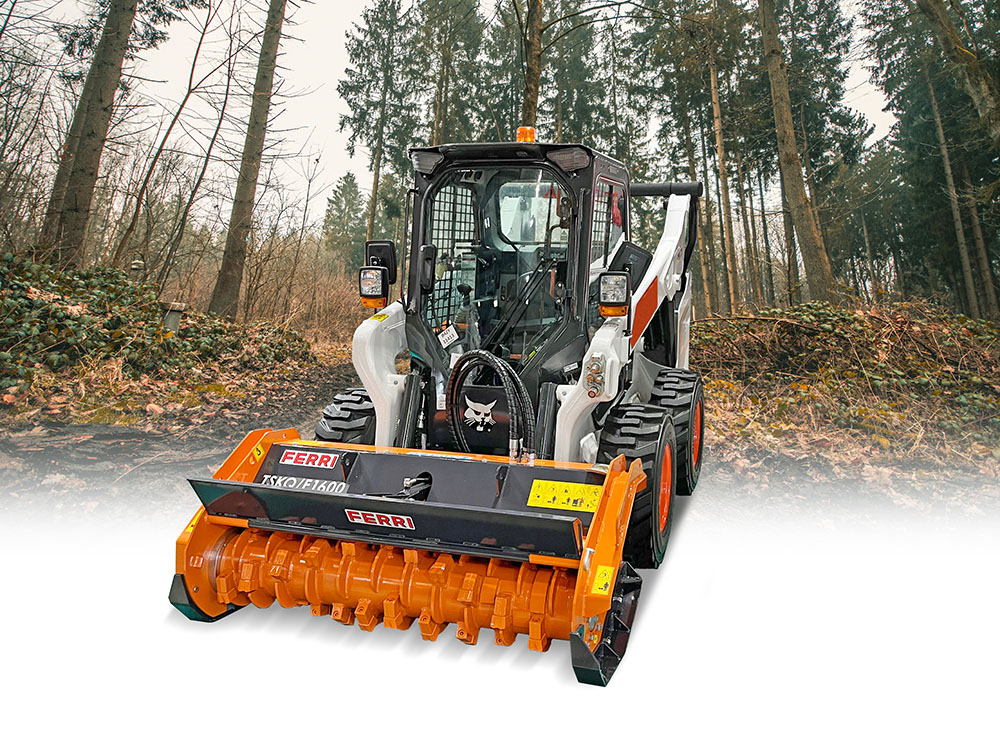

Hydraulic and forestry mulcher for skid loader

○

TSKQ

Construction

TSKQ

Hydraulic forestry mulcher with fixedteeth for works on uncultivated land, underwood and green areas, with grass, bushes, pruning and brambles up to Ø 8″. It is applied to skid steer loaders with power ranging between 70 HP and 120 HP and with oil flow from 21 to 40 gal min.

Working Width (ft): 5.25 - 5.91

Max. cutting diameter (inch): 7.88 - 7.88

Required Oil Flow Rate (gal): 21.13 - 39.65

Machine Weight (lbs): 2250 - 2425

Photo and video

Strengths

UNIVERSAL COUPLING SAE J2513 WITH SELF-LEVELING DEVICE

UNIVERSAL COUPLING SAE J2513 WITH SELF-LEVELING DEVICE

ROTOR FIXED TEETH WITH TUNGSTEN COATING AND ROTOR WITH STEEL PROFILES

ROTOR FIXED TEETH WITH TUNGSTEN COATING AND ROTOR WITH STEEL PROFILES

HARDOX 400 LINING

HARDOX 400 LINING

TWO ROWS OF COUNTER-KNIVES INSIDE THE FRAME

TWO ROWS OF COUNTER-KNIVES INSIDE THE FRAME

Equipment

Standard equipment

Universal quick coupling SAE J2513.

High strength reinforced frame in high yield point steel.

Double skin HARDOX steel frame equipped with two rows of counter-blades.

Two rows of counter-knives inside the frame.

50 cc piston engine.

Built-in 3/4" 3C valve (Control Valve: Anticavitation, Antishock, Flow Limiter).

Bearings mounted inside the rotor.

Front hood opening with hydraulic cylinder

Adjustable side skids.

Hydraulics tubes with a length of 1.8 m.

Optional

Mechanical push-over bar

Electrohydraulic hatch-opening kit, including deutsch 8-pin socket

Bosch-Rexroth VM55 Variable Displacement Motor

Push over bar for TSKQ 1600

Push over bar for TSKQ 1800
