ProTeam

TSP

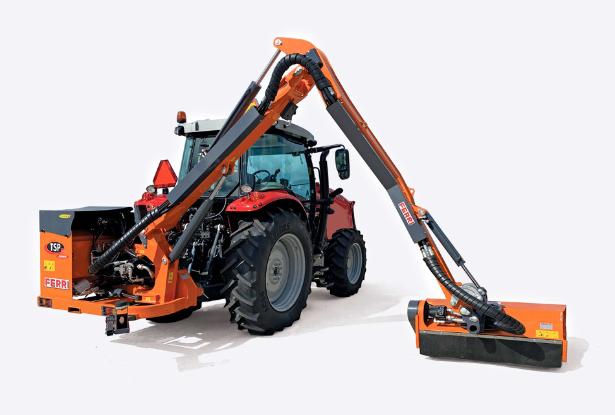

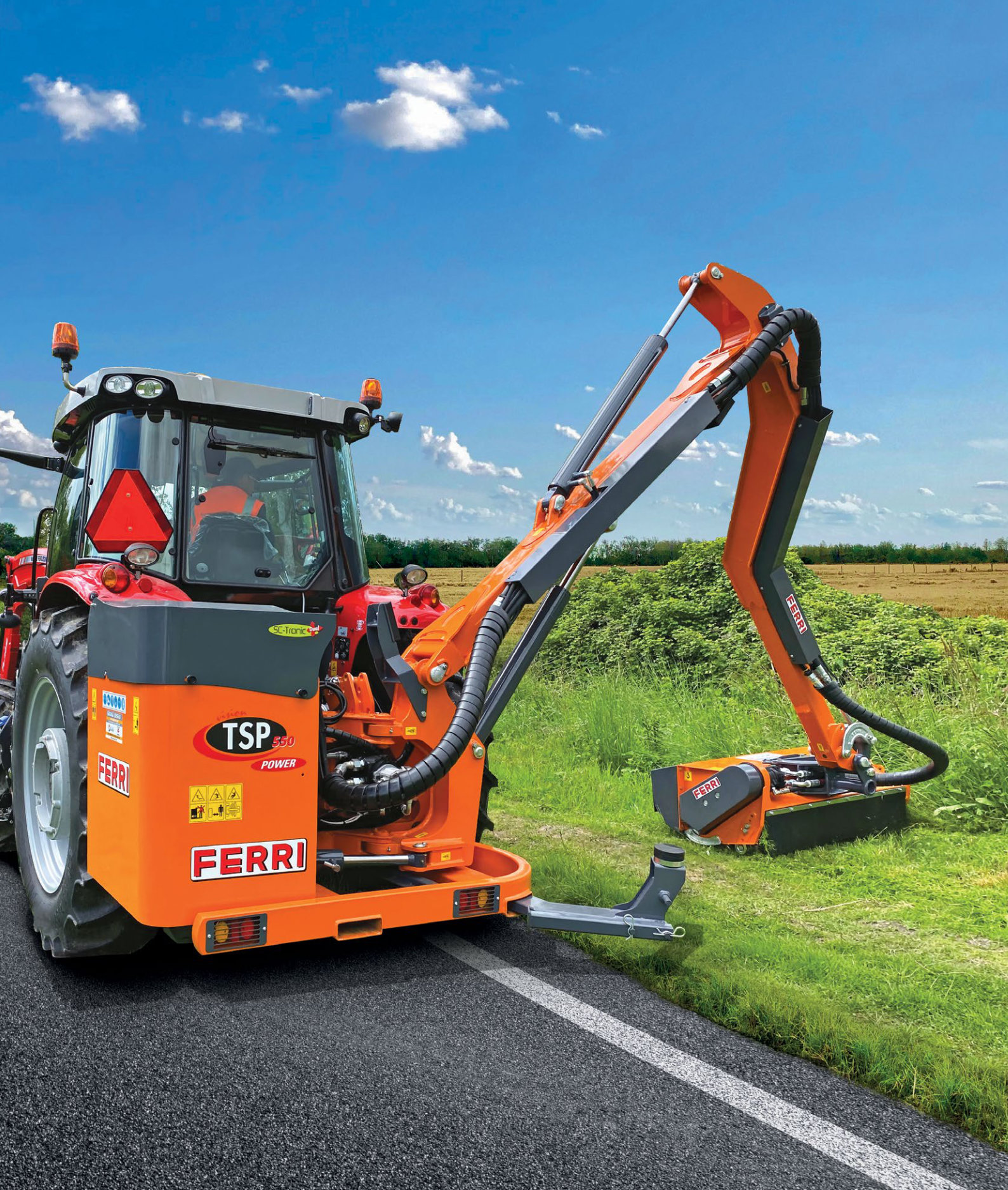

The TSP hydraulic reach mower model is the ideal machine for professional use in the maintenance of roads and highways. Available in the version with the hydraulic system with gears in open circuit (ENERGY) or with the hydraulic system with pistons in closed circuit (POWER), it can satisfy the highest professional requirements.The TSP model is recommended for all possible work sites (mowing, shredding and pruning). It is the first model that adopts REVERSE SAFETY (patent pending) which allows the arm to be rotated forward in the event that an obstacle is hit during the reverse phase with the arm open. The particular kinematics of this model allows you to work in total comfort, and there are also standard devices for active safety to protect the operator and the vehicle used; such as checking the oil temperature of the hydraulic system: in the event of an alarm, the operation of the cylinder head rotor is blocked, but not the arms to allow them to be repositioned safely. The new head, TNH (with direct transmission) and TNHC (with belt transmission) of 1.25 meters of working width, has been strengthened in the frame and offers an innovative and improved solution in the rear roller with new supports that require a very limited maintenance and strong resistance to stress.

Working Width (m): 1.25 - 1.25

Max. cutting diameter (cm): 8.0 - 8.0

Max Extension. (m): 5,52

Head Angle (°): 235

Machine Weight (kg): 1520

Tractor Power (HP): 90 - 120

Min. Tractor Weight (kg): 4000

Min.Tractor Width (m): 2,30

Hydraulic System Power (lt): 155

Strengths

REVERSIBLE ROTOR (DSR)

SAB ROLL-OVER PROTECTION SYSTEM AUTOMATIC ROLL-OVER PROTECTION WHEN THE FIRST ARM EXCEEDS 90° IN VERTICAL POSITION

LFA LIFT FLOAT ACCUMULATOR (LIFT FLOAT ON THE 1ST ARM BY ACCUMULATOR) PERMITS THE ENGAGEMENT AND DISENGAGEMENT OF THE LIFT FLOAT ON THE 1ST ARM

REVERSE SAFETY (PATENTED)

Equipment

Standard equipment

3 point ISO universal linkage CAT 2.

High Power Gear hydraulic system for energy version or piston system in closed circuit for power version.

SC Tronic Dual Electric control proportional with two separate elements. With CANBUS technology.

Oil cooler with thermostat and fan with automatic reverser.

Hydraulic breakaway with accumulator controlled autoreset facilty (SRA) – with manual disengagement. Power slew security (PSS) with max relief valve and soft stop

Automatic stop device of the flailhead rotor in case of high temperature of the hydraulic system.

Lift float electric (1st arm lift float with nitrogen accumulator) LFA Electric.

Electric Roll Over protection system (SAB).

Reverse safety.

Testata trinciante TNH 125 NG per la versione Energy e TNHC 125 NG per la versione Power, entrambe con motore idraulico in ghisa, con rullo di appoggio di grande diametro e unità flangiate Agri-Disk NG

Optional

Stabilizers to the tractor.

Sliding bracket to adapt to the tractor.

Stabilizers for sliding brackets.

TNHC 125 NG flail head with cast iron hydraulic motor, with large diameter support roller and Agri-Disk NG flanged units (opt. TSP Energy).
