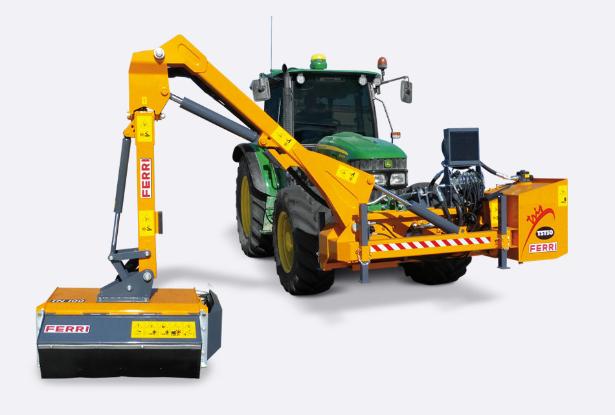

The TST50 hydraulic reach mowers, were develped and designed especially for the municipal and ground care operators.This model is mounted to the front of the tractor which allows for excellent operational visibility. The design of the arm allows the operator to fold it in a compact way to allow greater visibility for the operator during transfers. Equipped with a hydraulic break back system on the second arm, the TST50 model is also equipped with an automatic anti-tilting device. The TST50 is also equipped with an oilcooler, which allows for greater operational efficiency.

Working Width (m): 1.20 - 1.20
Max. cutting diameter (cm): 3 - 3
Max Extension. (m): 5,04
Head Angle (°): 190
Machine Weight (kg): 920
Tractor Power (HP): 90 - 110
Min. Tractor Weight (kg): 3200
Min.Tractor Width (m): 2,10
Hydraulic System Power (lt): 130

Strengths

REVERSIBLE ROTOR (DSR)
REVERSIBLE ROTOR (DSR)
LFA LIFT FLOAT ACCUMULATOR
LFA LIFT FLOAT ACCUMULATOR
SRA AUTOMATIC RETURN SYSTEM IN CASE HYDRAULIC BREAK BACK AN ACCUMULATOR CONTROLLED AUTORESET VALVE ALLOWS THE AUTOMATIC RETURN OF THE ARM IN THE WORKING POSITION
SRA AUTOMATIC RETURN SYSTEM IN CASE HYDRAULIC BREAK BACK AN ACCUMULATOR CONTROLLED AUTORESET VALVE ALLOWS THE AUTOMATIC RETURN OF THE ARM IN THE WORKING POSITION
SAB ROLL OVER PROTECTION SYSTEM
SAB ROLL OVER PROTECTION SYSTEM

Equipment

Standard equipment
3 point ISO universal linkage CAT 2
High Power Gear hydraulic system.
Double-speed electric control (DS-TRONIC DUAL).
Oil cooler in aluminium with thermostat
Hydraulic breakaway with accumulator controlled autoreset facilty on second arm.
Floating head system to follow ground contours.
Lift float electric (1st arm lift float with nitrogen accumulator) LFA Electric.
Power slew security with max relief valve.
Oil and PTO shaft.
Accident prevention protections according to EC directives.

Terminal Tools

TI 120 Energy
