TSKID

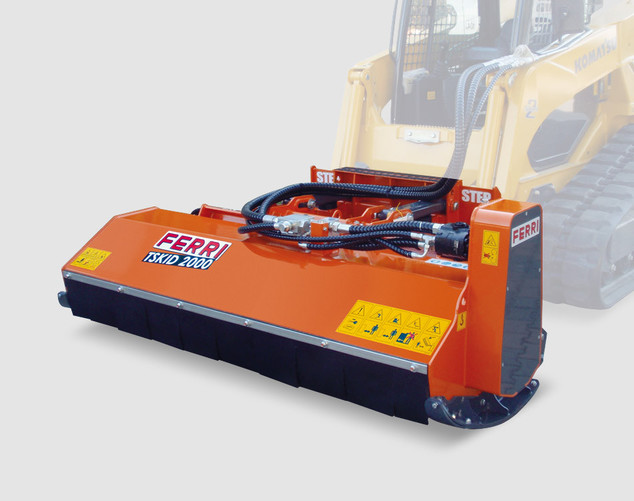

Flail head for skid steers loaders (max. cutting width: Ø 1 1/2").
Width of cut: 63" - 71" - 79"
Power skid steers loaders: 55 ÷ 100 HP
Required oil flow: 14,5-25 Gal/min

FLAIL HEADS for mini-loaders

Equipped with:
  • Unidirectional motor (with drainage)
  • Parallel linkage for better floating on uneven grounds
  • Linkage (SAE J2513) with self-levelling device
  • Mechanical side shift
  • Anti-shock + anticavitation valve
  • Steel adjusting valve complete with pipes
  • “Overlap” rotor
  • Hydraulic pipes and connections protected by spiral
  • Belts transmission
  • Adjustable skids with replaceable wear proof plates
  • Rear adjustable roller Ø 6’’1/2
  • Counterblade
  • Rubber and abrasion resistant guard

Option:
  • Side shift with hydraulic cylinder complete with pipes
