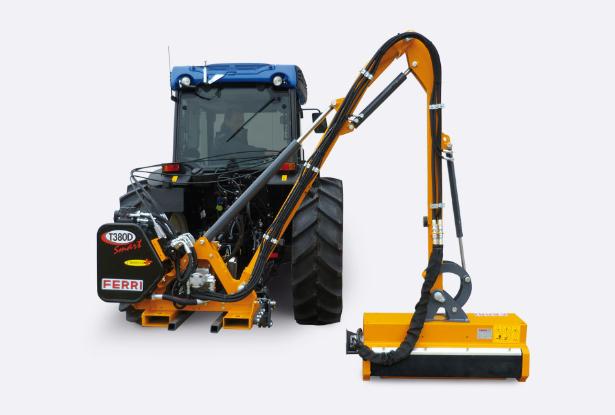

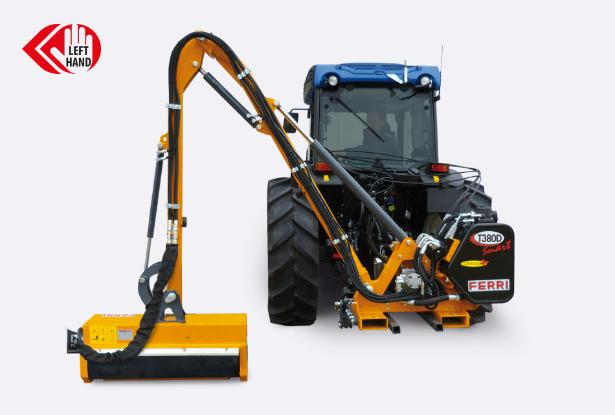

Technological innovation and restyling characterize the hydraulic reach mowers T380D. The new flail head TID100, 1m width named “Trial” uses the same rotor to fit multiuse Y, articulated Y and hammers. A unique feature is the circular section of the arms (HTR High Torsion Resistance). The use of press molded components for the arm articulation as well as the electrical controls with joystick option make these compact reach mowers a valuable tool for farmers and landscapers. Left Hand version available.

Cutting width (ft): 3.3 - 3.3

Max. cutting diameter (in.): 3.75 - 3.75

Max. horizontal reach (ft): 12.7

Flailhead angle (°): 190

Weight (lbs): 1080

Tractor (HP): 40 - 60

Min. tractor weight (lbs): 3747 - 3747

Min.tractor width (ft): 4.11

Oil (Gal.): 18.5

Strengths

DELTA BOX FRAME FORCES SHARED AND BALANCED

REVERSIBLE ROTOR (DSR)

FLOATING HEAD SYSTEM TO FOLLOW GROUND CONTOURS

MECHANICAL SHOCK ABSORBER

Equipment

Standard equipment

3 point ISO universal linkage CAT 1 and 2.

Gear independent hydraulic system.

Cable controls (Classic). Electric progressive control (Electra). Electric progressive controls with electric switch for rotor start and stop (Electra Full).

Arms with circular section H.T.R. (High Torsion Resistance).

Mechanical breakway.

Floating head system to follow ground contours.

Oil and PTO shaft.

DELTA BOX Frame (Forces shared and balanced).

Accident prevention protections according to EC directives.

Optional

Stabilizers to the tractor.

Delta yoke for stabilizers.

Stabilizers for Delta yoke.

Oil cooler with thermostat.

Lift float on 1st arm with nitrogen accumulator, mechanical LFA.

Terminal Tools

CS 150 S2 Energy

CSP 150 Energy

TID 100

AGRICOLTURAL, MUNICIPALITIES, LANDSCAPING MANAGEMENT

CONSTRUCTION
