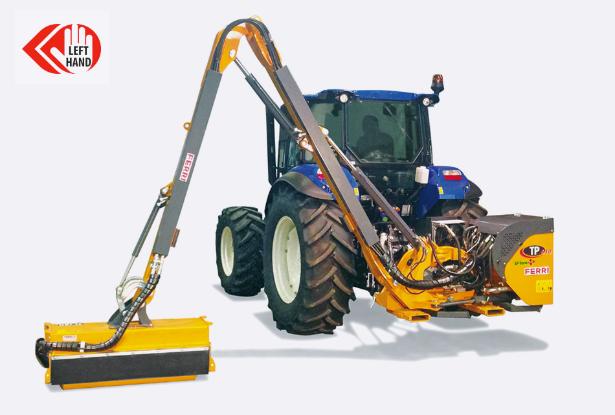

“The hydraulic reach mower model TP490 and TP600, continues to evolve to follow the needs of the market by becoming even more the benchmark in the market for performance and durability, superior to all other market players.
The new version, PLUS, responds to the demand of an increasing number of users who had a need for equipment with more power, a hydraulic circuit with an increased flow rate, in essence the highest performance of what the market currently offers.
In the new series, the the TP model is available in 15.9 ft and 19.5 ft reach versions and offers a wide range of accessories and options to increase its versatility of use, allowing it to meet any work requirement.
The new models are designed for farmers, medium-sized farms and local government green maintenance teams and ensure maximum reliability and ease of use.”

Cutting width (ft): 3.11 - 3.11
Max. cutting diameter (in.): 1.75 - 1.75
Max. horizontal reach (ft): 15'9" - 19'5
Flailhead angle (°): 190
Weight (lbs): 1984 - 2094
Tractor (HP): 60 - 90
Min. tractor weight (lbs): 6614 - 7050
Min.tractor width (ft): 6'7" - 7'3"
Oil (Gal.): 36

Strengths

HYDRAULIC BREAKAWAY WITH SOFT STOP
HYDRAULIC BREAKAWAY WITH SOFT STOP
LFA LIFT FLOAT ACCUMULATOR
LFA LIFT FLOAT ACCUMULATOR
FLOATING HEAD SYSTEM TO FOLLOW GROUND CONTOURS
FLOATING HEAD SYSTEM TO FOLLOW GROUND CONTOURS
SAB ROLL-OVER PROTECTION SYSTEM AUTOMATIC ROLL-OVER PROTECTION WHEN THE FIRST ARM EXCEEDS 90° IN VERTICAL POSITION
SAB ROLL-OVER PROTECTION SYSTEM AUTOMATIC ROLL-OVER PROTECTION WHEN THE FIRST ARM EXCEEDS 90° IN VERTICAL POSITION

Equipment

Standard equipment
3 point ISO universal linkage CAT 2.
Gear independent hydraulic system.
Cable controls (Classic).Proportional electrical controls with 4 functions proportional (EG-Tronic).
Oil cooler with thermostat in aluminium (EG-Tronic).
Hydraulic break-back with max. relief valve and soft stop.
Floating head system to follow ground contours.
Electrical lift float (LFA) on 1st arm with nitrogen accumulator.
Rollover protection system (SAB).
Oil and PTO shaft.
Accident prevention protections according to EC directives.
Optional
Stabilizers to the tractor.
Delta yoke for stabilizers.
Stabilizers for Delta yoke.
Sliding bracket to adapt to the tractor.
Oil cooler with thermostat (Classic).
