TST

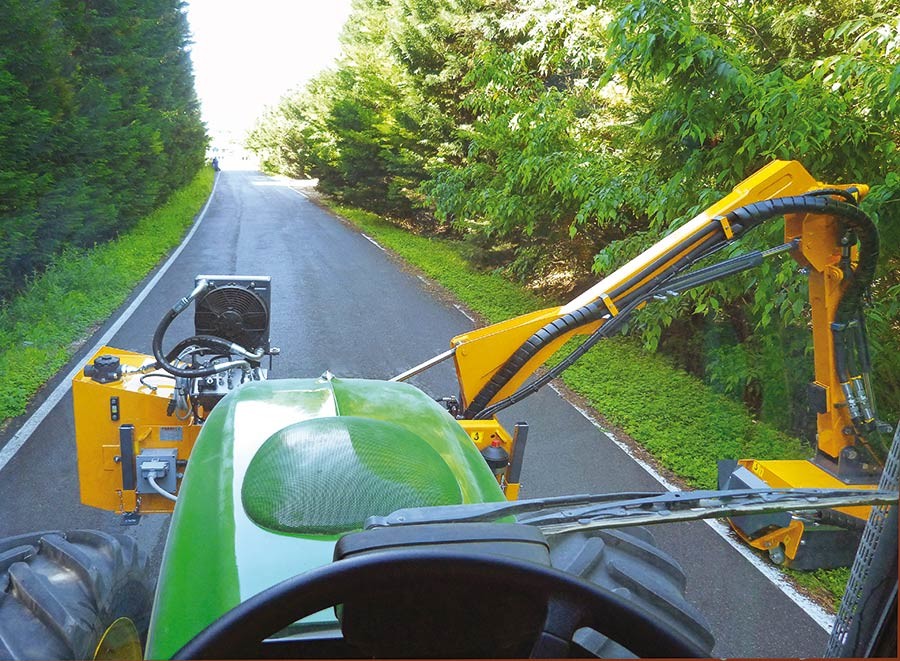

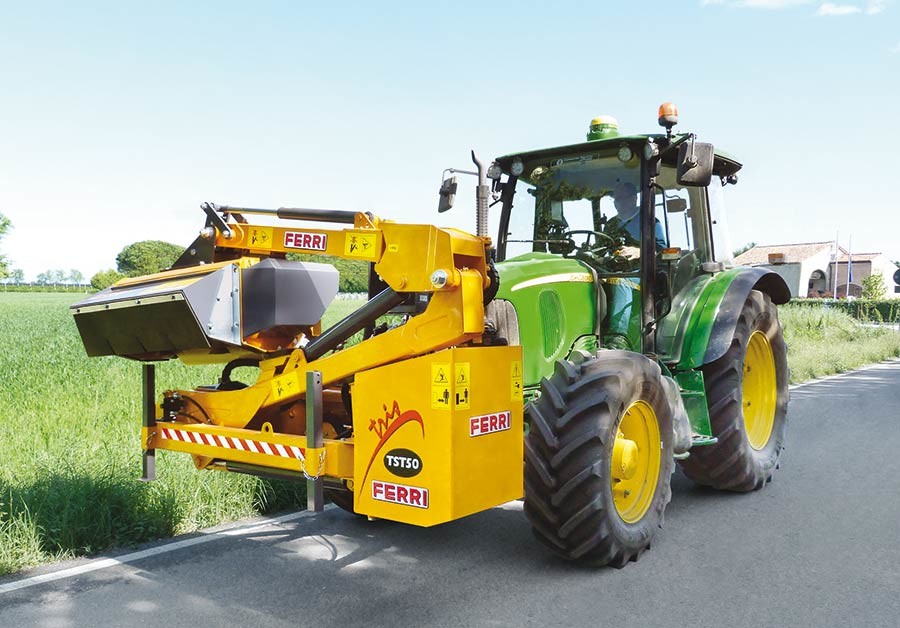

The TST50 hydraulic reach mowers, were develped and designed especially for the municipal and ground care operators.This model is mounted to the front of the tractor which allows for excellent operational visibility. The design of the arm allows the operator to fold it in a compact way to allow greater visibility for the operator during transfers. Equipped with a hydraulic break back system on the second arm, the TST50 model is also equipped with an automatic anti-tilting device. The TST50 is also equipped with an oilcooler, which allows for greater operational efficiency.

Cutting width (ft): 3.11 - 3.11

Max. cutting diameter (in.): 2.5 - 2.5

Max. horizontal reach (ft): 16.5

Flailhead angle (°): 190

Weight (lbs): 2028

Tractor (HP): 90 - 110

Min. tractor weight (lbs): 7055 - 7055

Min.tractor width (ft): 6.9

Oil (Gal.): 34

Strengths

REVERSIBLE ROTOR (DSR)

LFA LIFT FLOAT ACCUMULATOR

SRA AUTOMATIC RETURN SYSTEM IN CASE HYDRAULIC BREAK BACK AN ACCUMULATOR CONTROLLED AUTORESET VALVE ALLOWS THE AUTOMATIC RETURN OF THE ARM IN THE WORKING POSITION

SAB ROLL OVER PROTECTION SYSTEM

Equipment

Standard equipment

3 point ISO universal linkage CAT 2

High Power Gear hydraulic system.

Double-speed electric control (DS-TRONIC DUAL).

Oil cooler in aluminium with thermostat

Hydraulic breakaway with accumulator controlled autoreset facilty on second arm.

Floating head system to follow ground contours.

Lift float electric (1st arm lift float with nitrogen accumulator) LFA Electric.

Power slew security with max relief valve.

Oil and PTO shaft.

Accident prevention protections according to EC directives.

Terminal Tools

TI 120 Energy

AGRICOLTURAL, MUNICIPALITIES, LANDSCAPING MANAGEMENT

CONSTRUCTION
