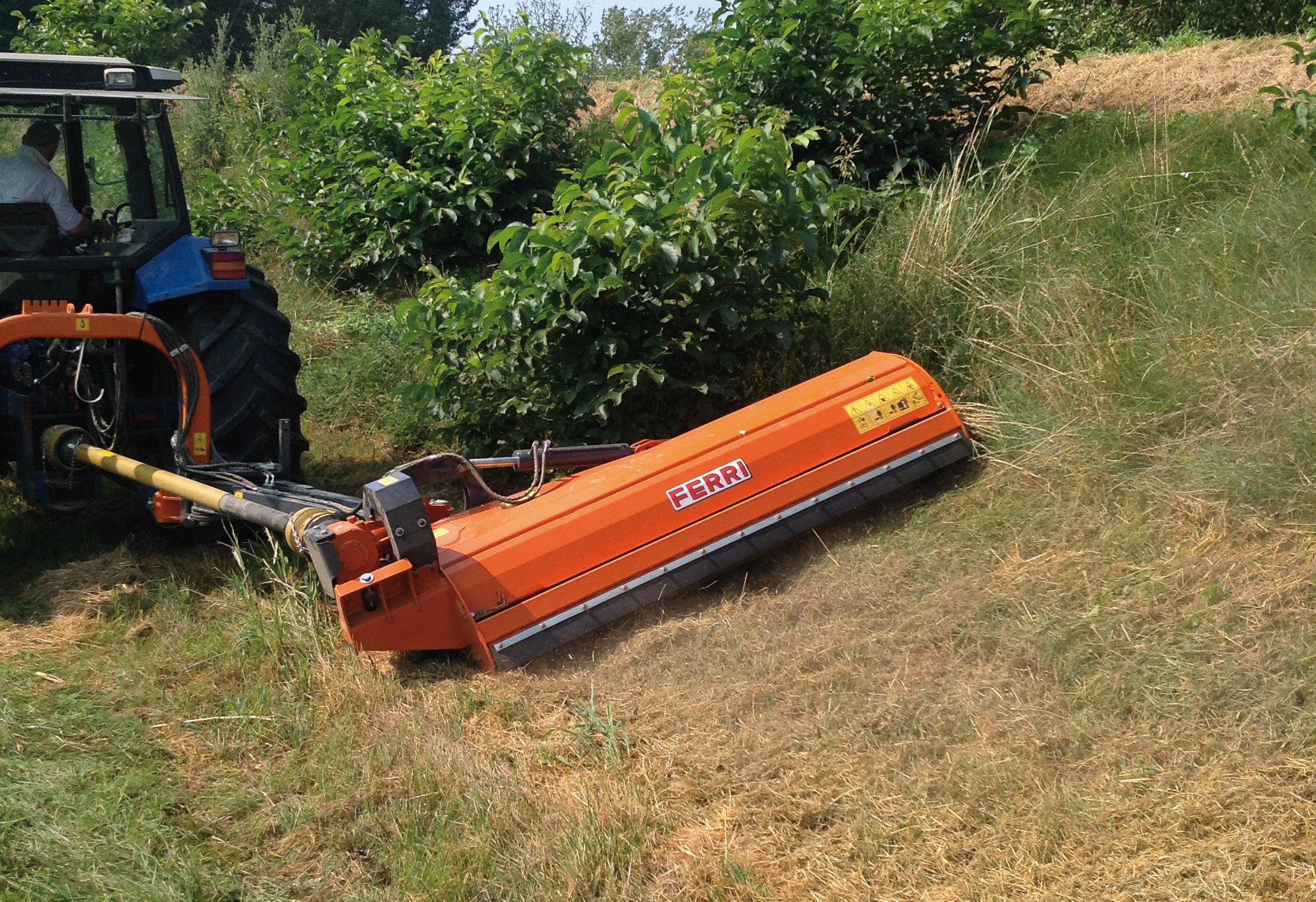

The ZHE2500 Central and offset mower meets the needs of the professional green maintenance operators, who require high productivity and reliability. The productivity is ensured by the significant cutting width of the machine and by the “Overlap” double helix rotor. The reliability stems from the presence of relevant structural details, such as the inner subframe all round protection, the shock absorber with mechanical springs, the rotation joint mounted on self-lubricating bushings and the height adjustable roller (Ø 168 mm with removable end caps). Particular attention has been paid to the safety during transportation, a double hydraulic lock system prevents unintentional movement or the oscillation of the mower.

Working Width (ft): 8.2 - 8.2
Max. cutting diameter (inch): 2 - 2
Max Extension. (ft): 12
Head Angle (°): +90 , -60
Machine Weight (lbs): 2992
Tractor Power (HP): 100 - 160
Min. tractor weight (lbs): 8818 - 8818
Tractor Width (ft): 7.5

Strengths

REINFORCED OVERLAP DOUBLE ROW SPIRAL ROTOR
REINFORCED OVERLAP DOUBLE ROW SPIRAL ROTOR
INNER LINING
INNER LINING
MECHANICAL SHOCK ABSORBER
MECHANICAL SHOCK ABSORBER
540 RPM PTO GEARBOX WITH OVERRUN CLUTCH POSITIONED INSIDE THE MACHINE CASING
540 RPM PTO GEARBOX WITH OVERRUN CLUTCH POSITIONED INSIDE THE MACHINE CASING

Equipment

Standard equipment
Universal three point linkage ISO cat. 2 and 3.
540 RPM PTO gearbox with overrun clutch positioned OUTSIDE the machine casing.
Head positioning hydraulic cylinder with floating system and mechanical safety device for transport.
Parallelogram side shift with protected and adjustable hydraulic cylinder.
Reinforced “OVERLAP” double row spiral rotor.
Rotation joint and arms mounted on self-lubricating bushes.
Front guard with steel flaps and rear guard with reinforced wear resistant rubber cloth.
PTO shaft.
Adjustable and self-cleaning rear roller Ø 168 mm.
Accident prevention protections according to EC directives.
