ZLE PRO

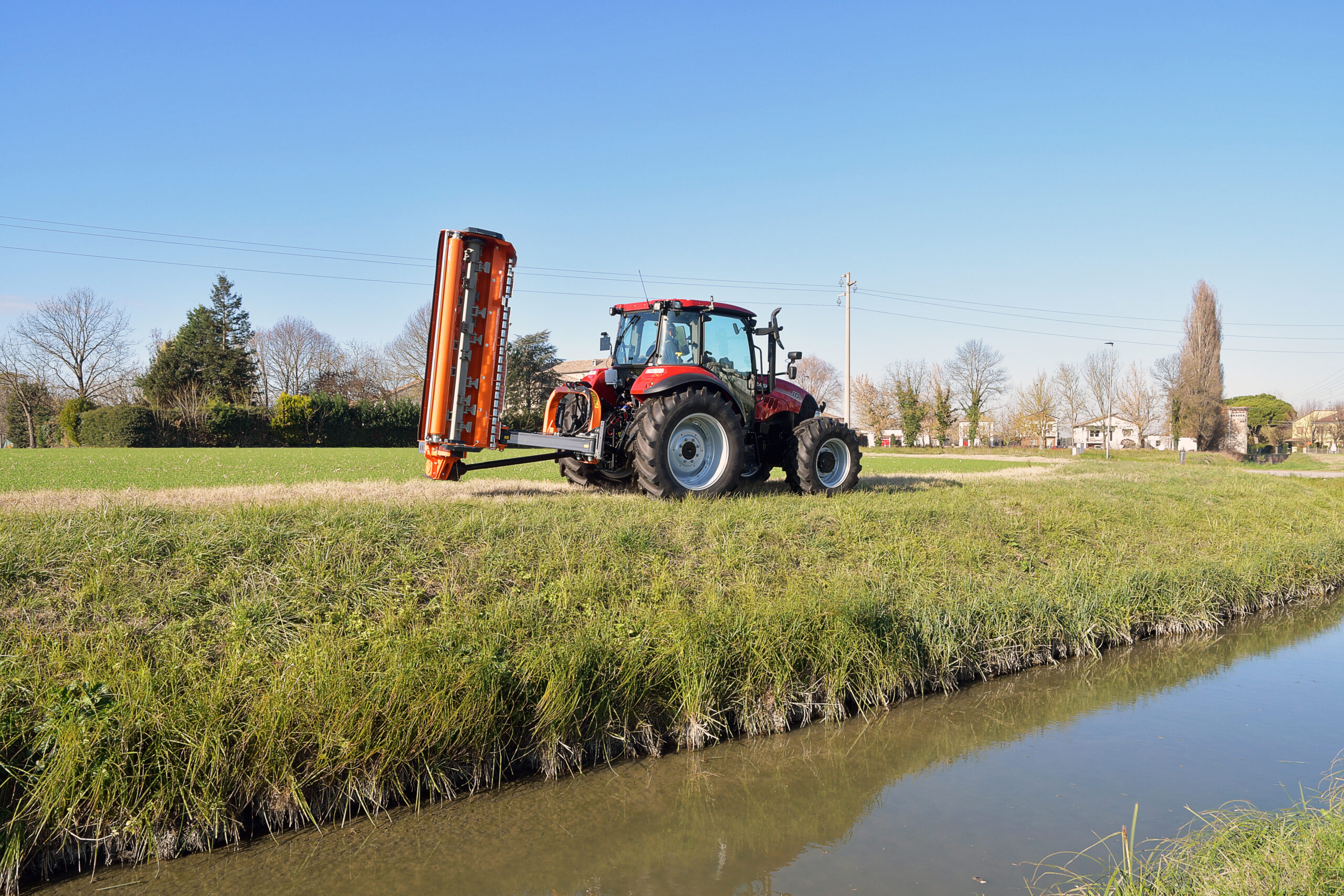

The new model of professional offset mower ZLE PRO is particularly recommended for mulching prunings, branches and in general for the maintenance of road verges, hedges and embankments.
It can work behind the tractor in both central and lateral positions. Suitable for tractors from 60 to 120 HP.
As standard, the ZLE PRO model has a reinforced structure with the subframe in STRENX steel to avoid damage to the frame and the efficent mechanical breakaway to protect the machine in the event of a collision with obstacles.

Working Width (ft): 6.0 - 7.6

Max. cutting diameter (inch): 1 - 1.75

Max Extension. (ft): 9'11" - 11'4

Head Angle (°): +90 , -60

Machine Weight (lbs): 1830 - 2000

Tractor Power (HP): 60 - 120

Min. Tractor Weight (lbs): 6173 - ì7050

Min.Tractor Width (ft): 6'7" - 7'7"

Photo and video

Strengths

REINFORCED OVERLAP DOUBLE ROW SPIRAL ROTOR

REINFORCED OVERLAP DOUBLE ROW SPIRAL ROTOR

INNER LINING FULL COVERAGE STRENX 700

INNER LINING FULL COVERAGE STRENX 700

MECHANICAL SHOCK ABSORBER

MECHANICAL SHOCK ABSORBER

540 RPM PTO GEARBOX WITH OVERRUN CLUTCH POSITIONED INSIDE THE MACHINE CASING

540 RPM PTO GEARBOX WITH OVERRUN CLUTCH POSITIONED INSIDE THE MACHINE CASING

Equipment

Standard equipment

Universal three point linkage ISO cat 2.Universal three point linkage ISO cat. 3

540 RPM PTO gearbox with overrun clutch positioned OUTSIDE the machine casing.

Double skin mulching frame with internal “Full Coverage” layer in Sttrenx 700.

Lateral parallelogram offset with protected adjustable hydraulic cylinder.

Reinforced “OVERLAP” double row spiral rotor.

Rotation joint and arms mounted on selflubricating bushes.

Front guard with steel flaps and rear guard made of reinforced wear resistant rubber-cloth.

PTO shaft with reinforced universal joints.

Adjustable rear roller Ø 168 mm with NG bearing supports and reinforced roller scraper.

Accident prevention protections according to EC directives.
