ZME

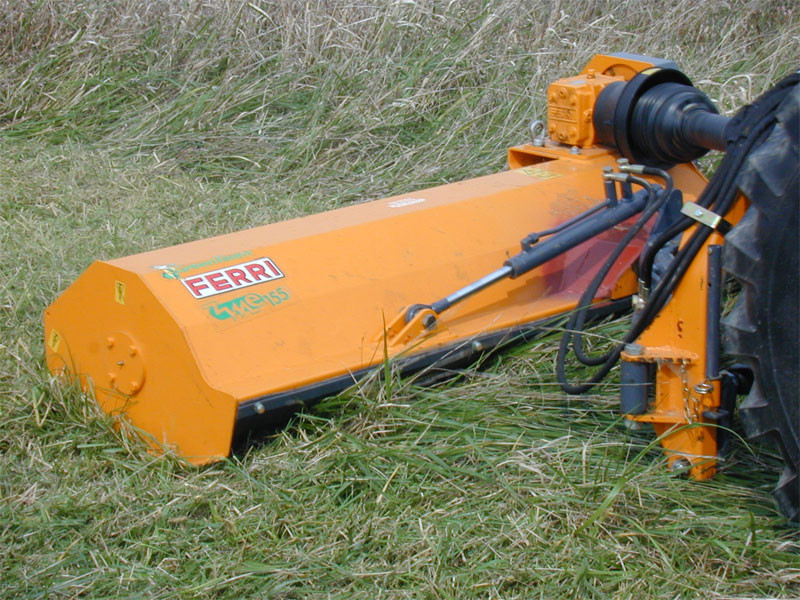

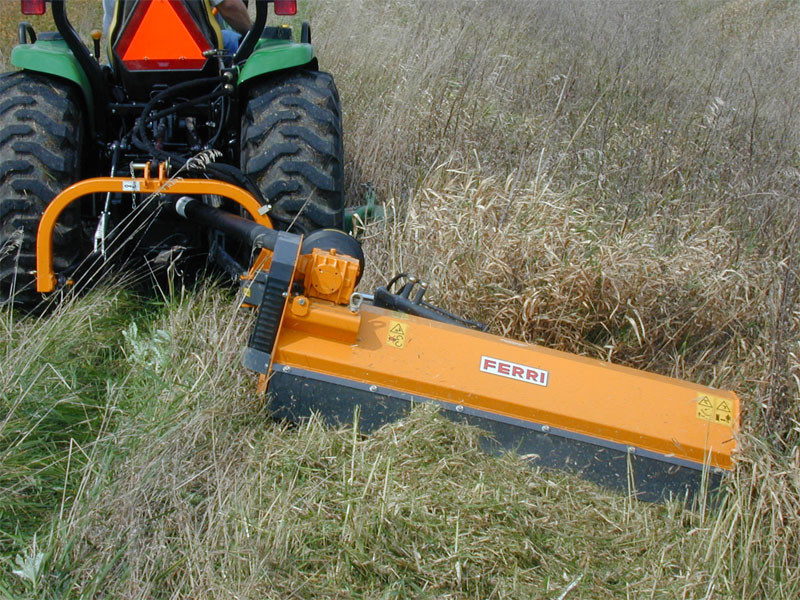

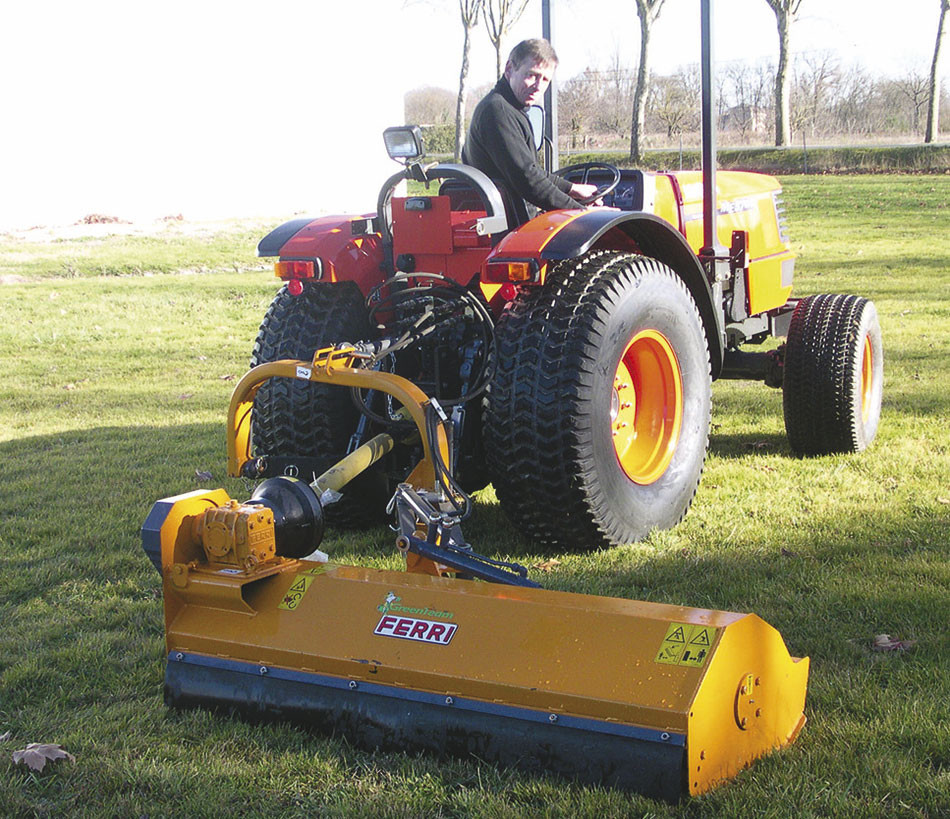

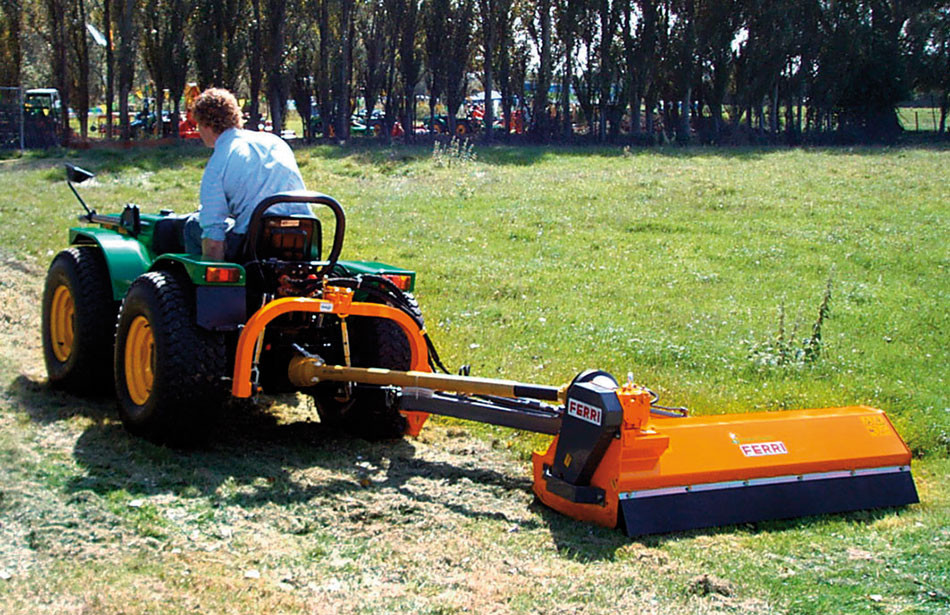

ZME is specifically designed for compact tractors; unique of its kind, it is ideally suited for tractors over 700 kgs.

Working Width (ft): 4.1 - 5.1

Max. cutting diameter (inch): 1 - 1

Max Extension. (ft): 1,74 - 2.04

Head Angle (°): +90, -50

Machine Weight (lbs): 511 - 575

Tractor Power (HP): 18 - 40

Min. Tractor Weight (lbs): 1555 - 2000

Min.Tractor Width (ft): 3'7" - 3'11

INTERNAL ROTOR BEARING

MECHANICAL SHOCK ABSORBER DEVICE PROTECTION IN CASE OF OBSTACLES

ROTATION JOINT AND ARMS MOUNTED ON SELFLUBRICATING BUSHES

540 RPM PTO GEARBOX WITH OVERRUN CLUTCH POSITIONED INSIDE THE MACHINE CASING

Standard equipment

Universal three point linkage ISO cat. 1.

540 RPM PTO transmission unit.

Inner lining.

Hydraulic parallelogram side shift.

Transport position with mechanical safety device.

Mechanical breakaway

Front and rear guard made of reinforced wear resistant rubber-cloth.

Wear resistant skids.

Height adjustable rear roller Ø 100 mm.

Accident prevention protections according to EC directives.
