ZMTE PRO

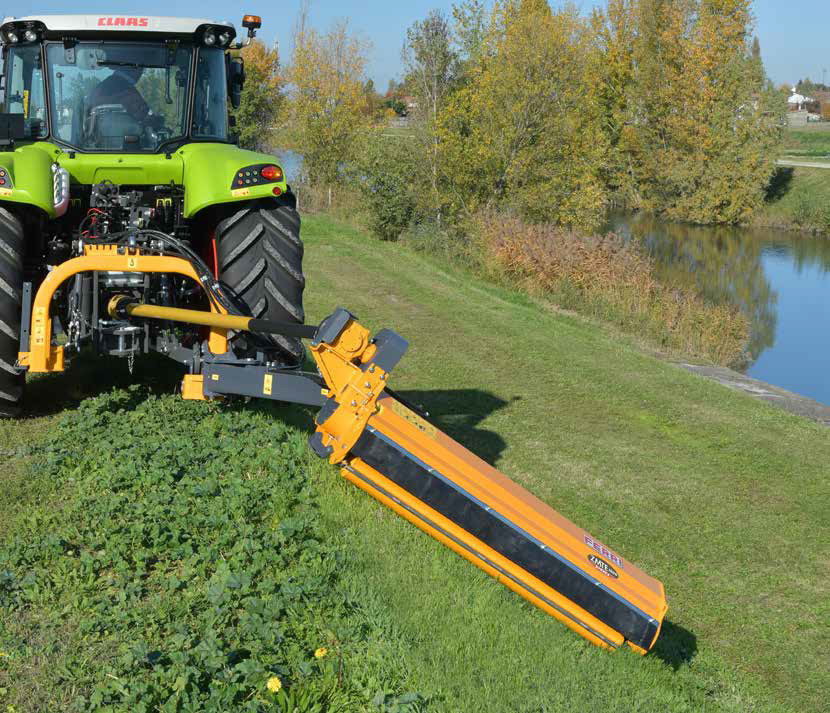

The new model of side shredder ZMTE PRO, is the ideal solution for the cleaning of edges of plots of land, ditch banks, and generally green areas. The external positioning of the multiplier unit allows to operate totally outside the tractor track in absolute safety, suitable for tractors from 60 to 80 HP. As standard, the ZMTE PRO model is equipped with the DOMEX subframe to avoid damage to the frame itself and the innovative mechanical shock absorber to protect the whole machine in case of impact against obstacles. Recommended for grass, bushes, shrubs and wood up to 4 cm in diameter.

Working Width (ft): 5.5 - 7.6
Max. cutting diameter (inch): 1.75 - 1.75
Max Extension. (ft): 9'2" - 11'4"
Head Angle (°): +90, -45
Machine Weight (lbs): 1336 - 1556
Tractor Power (HP): 60 - 80
Min. Tractor Weight (lbs): 5291 - 5732
Min.Tractor Width (ft): 5'3" - 7'7"

Strengths

FLOATING FLAILHEAD FRAME
FLOATING FLAILHEAD FRAME
INNER LINING DOMEX 700
INNER LINING DOMEX 700
HYDRAULIC AND MECHANICAL LOCKING PIN FOR TRANSPORT NO CHAINS NO BRACKETS
HYDRAULIC AND MECHANICAL LOCKING PIN FOR TRANSPORT NO CHAINS NO BRACKETS
540 RPM PTO GEARBOX WITH OVERRUN CLUTCH POSITIONED INSIDE THE MACHINE CASING
540 RPM PTO GEARBOX WITH OVERRUN CLUTCH POSITIONED INSIDE THE MACHINE CASING

Equipment

Standard equipment
Universal three point linkage ISO cat. 2
540 RPM PTO gearbox with overrun clutch positioned OUTSIDE the machine casing
Inner lining “Full coverage” Domex 700.
Lateral parallelogram offset with protected adjustable hydraulic cylinder.
Reinforced “OVERLAP” double row spiral rotor.
Rotation joint and arms mounted on selflubricating bushes.
Front guard with steel flaps and rear guard made of reinforced wear resistant rubber-cloth.
PTO shaft with reinforced universal joints.
Height adjustable self-cleaning rear roller Ø 140 mm.
Accident prevention protections according to EC directives.
