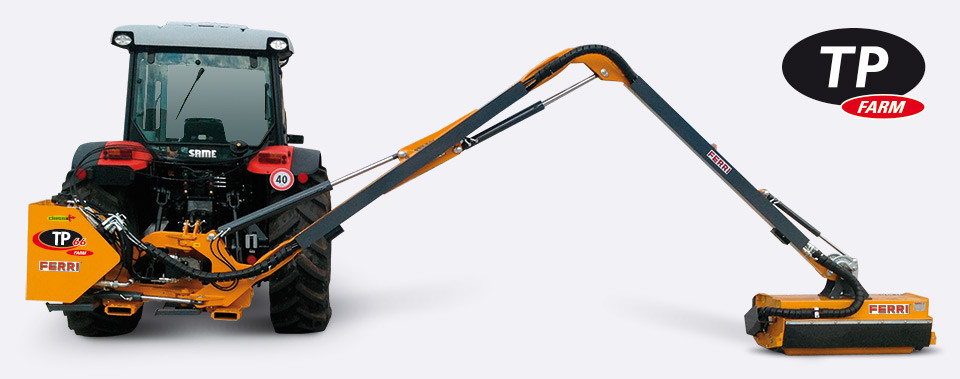

Hydraulic reach mowers TP Farm

Functionality, reliability and efficiency characterize the TP Farm.

Ferri Engineers have designed this model focusing on the right balance between max. reach and overall weight. The obtained result allows coupling the reach mower to a wide range tractors from 60 to 100 horsepower. The TP Farm is able to fully meet multiple needs of landscapers and farmers . Common features of the three models are the use of drop forged parts, the fitting of a cast iron pump and motor Group 3, a floating system enabling the flail head to better follow the ground contours. The TP66 is characterized by longer and stronger arms.

TP Farm

Max horizontal reach from m 4,72 to 6,50
Tractors from 60 to 100 HP
Width of cut from m 1,00 to 1,20
Cutting capacity max 4 cm

container 19782 eng — Hydraulic breakaway on power slew ram with max. relief valve (safeguards arm in case of obstacles).

container 19778 eng — Floating head system

container 19780 eng — “OVERLAP” spiral rotor with two spiral rows

container 19783 eng — Frame “DELTA BOX” (forces shared and balanced.

container 19777 eng — Drop forged parts.

container 19774 eng — Mechanic roll-over protection system SAB.

container 19776 eng — Classic: cable controls.

container 19779 eng — FF45 Ditch cleaners.

container 19781 eng — Oil cooler with thermostat (option)
